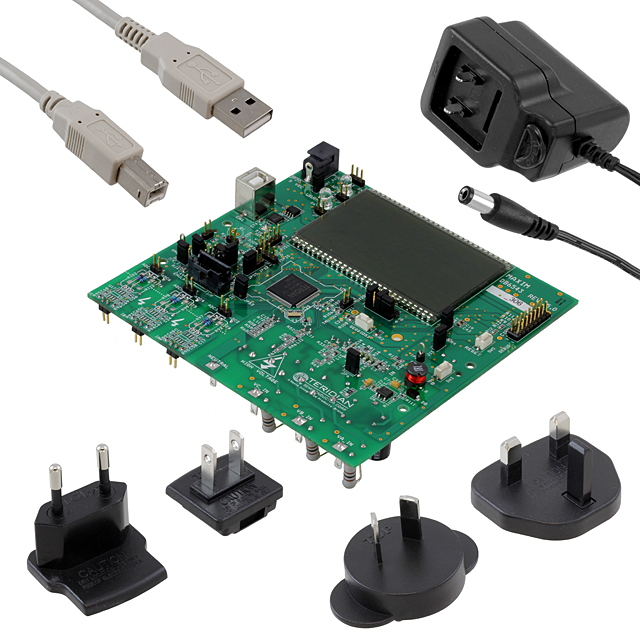

DEMO BOARD 71M6543F-DB-CT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
71M6543F-DB-CT - 71M6543F-DB-CT

71M6543F-DB-CT

Active
Analog Devices Inc./Maxim Integrated

DEMO BOARD 71M6543F-DB-CT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification71M6543F-DB-CT71M6543 Series
EmbeddedFalseFalse
FunctionEnergy/Power MeterEnergy/Power Meter
Measurement Error-0.1 %
Meter Type-3 Phase
Mounting Type-Surface Mount
Operating Temperature-85 °C
Operating Temperature--40 °C
Package / Case-100-LQFP
Supplied ContentsCable(s), Power Supply, Board(s)Cable(s), Power Supply, Board(s)
Supplier Device Package-100-LQFP (14x14)
TypePower ManagementPower Management
Utilized IC / Part71M654371M6543
Voltage - I/O High-2 V
Voltage - I/O Low-0.8 V
Voltage - Supply-3 V
