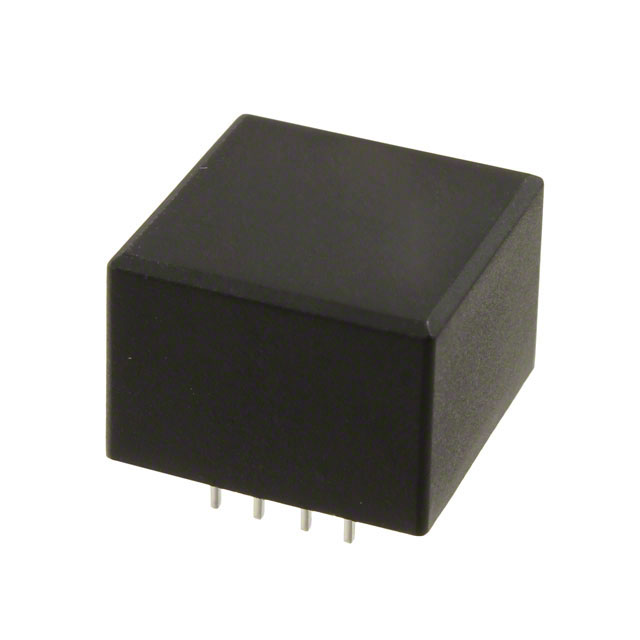

LM-NP-1002L
ActiveBourns Inc.
TRANSFORMER 2.8H TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM-NP-1002L
ActiveBourns Inc.
TRANSFORMER 2.8H TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM-NP-1002L |
|---|---|
| Height - Seated (Max) [Max] [z] | 0.496 " |
| Height - Seated (Max) [Max] [z] | 12.6 mm |
| Inductance | 2.8 H |
| Mounting Type | Through Hole |
| Size / Dimension [x] | 17.7 mm |
| Size / Dimension [x] | 0.697 in |
| Size / Dimension [y] | 17.7 mm |
| Size / Dimension [y] | 0.697 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.36 | |
| 28 | $ 6.32 | |||
| 112 | $ 5.20 | |||
| 1008 | $ 4.92 | |||
Description
General part information
LM-NP Series
TRANSFORMER 2.8H TH
