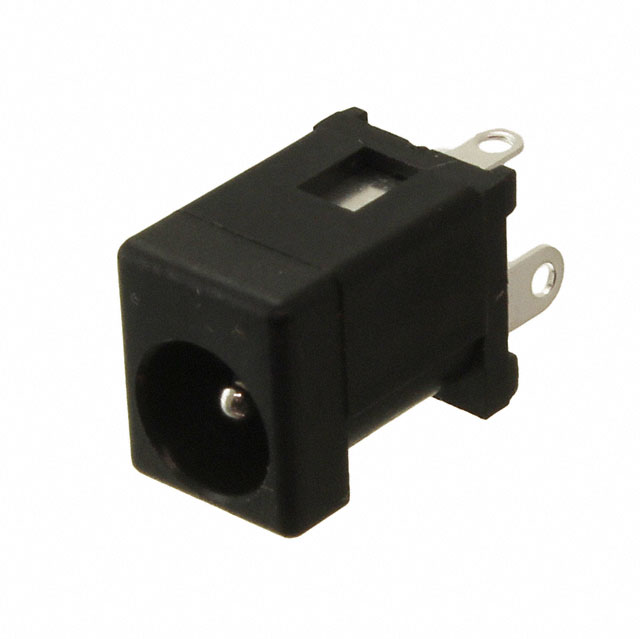

ADC-H-010-10
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC-H-010-10 |
|---|---|
| Actual Diameter [diameter] | 0.252 ", 0.118 in |
| Actual Diameter [diameter] | 3 mm, 6.4 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 3 mm, 5.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.118 ", 0.217 " |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.295 in |
| Mating Length/Depth | 7.5 mm |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.20 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.55 | |||
Description
General part information
ADC-H-010 Series
Power Barrel Connector Jack 3.00mm ID (0.118"), 5.50mm OD (0.217") Through Hole
