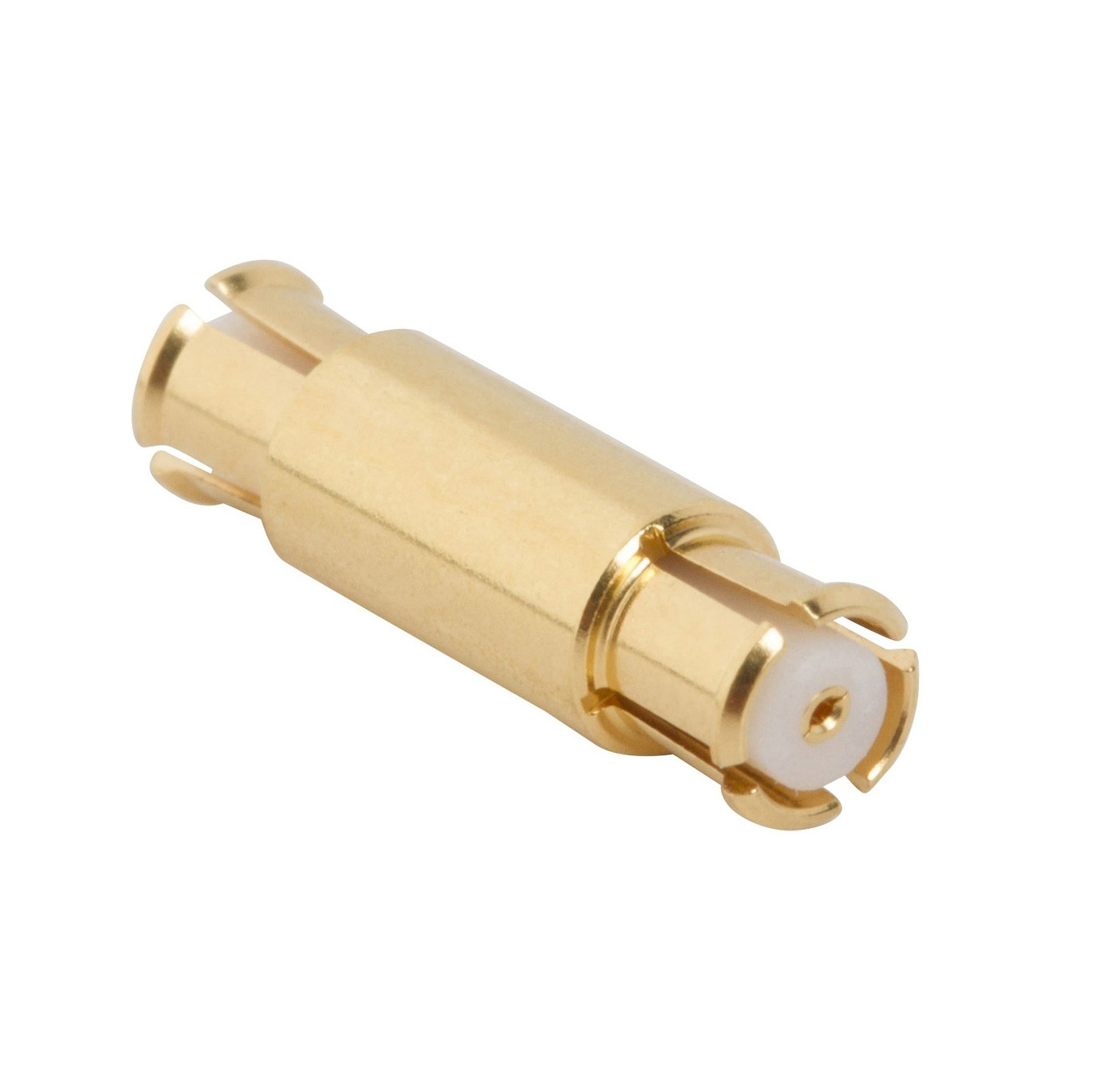

SMP-FSBA-1316

Active

AMPHENOL RF

ADAPTER, SMP PLUG TO SMP PLUG, F

Deep-Dive with AI

Search across all available documentation for this part.

SMP-FSBA-1316

Active

AMPHENOL RF

ADAPTER, SMP PLUG TO SMP PLUG, F

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.04
		10	$ 6.37
		25	$ 6.01
		50	$ 5.87
		100	$ 5.57
		250	$ 4.99
		500	$ 4.69
		1000	$ 4.11
		2500	$ 3.90

Description

General part information

SMP-FSBA Series

Adapter Coaxial Connector SMP Plug, Female Socket To SMP Plug, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-FSBA-1316	SMP-FSBA Series

Adapter Series	SMP to SMP	SMP to SMP
Adapter Type	Plug to Plug	Plug to Plug
Body Finish	Gold	Gold
Body Material	Beryllium Copper	Beryllium Copper
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Female Socket, SMP Plug	Female Socket, SMP Plug
Convert To (Adapter End)	SMP Plug, Female Socket	SMP Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	26.5 GHz	26.5 GHz
Impedance	50 Ohms	50 Ohms
Includes	-	1 Connector, 1 Spring
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

SMP-FSBA Series

CONN SMP ADAPTER 0HZ TO 26.5GHZ 50OHM ST PL/PL GOLD OVER HIGH PHOSPHOROUS ELECTROLESS NICKEL BAG

Part	Body Material	Convert To (Adapter End)	Center Contact Material	Center Contact Plating	Body Finish	Center Gender	Frequency - Max [Max]	Mounting Type	Adapter Series	Convert From (Adapter End)	Adapter Type	Dielectric Material	Impedance	Style	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Conversion Type	Includes
AMPHENOL RF SMP-FSBA-093	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-090	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-1716	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-739	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-1316	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-145	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-594	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series	1 Connector, 1 Spring
AMPHENOL RF SMP-FSBA-645	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
AMPHENOL RF SMP-FSBA-990	Beryllium Copper	Female Socket, SMP Plug	Beryllium Copper	Gold	Gold	Female to Female	26.5 GHz	Free Hanging (In-Line)	SMP to SMP	Female Socket, SMP Plug	Plug to Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	-65 ░C	165 °C	Snap-On	Same Series
