10336-C500-00
Active3M

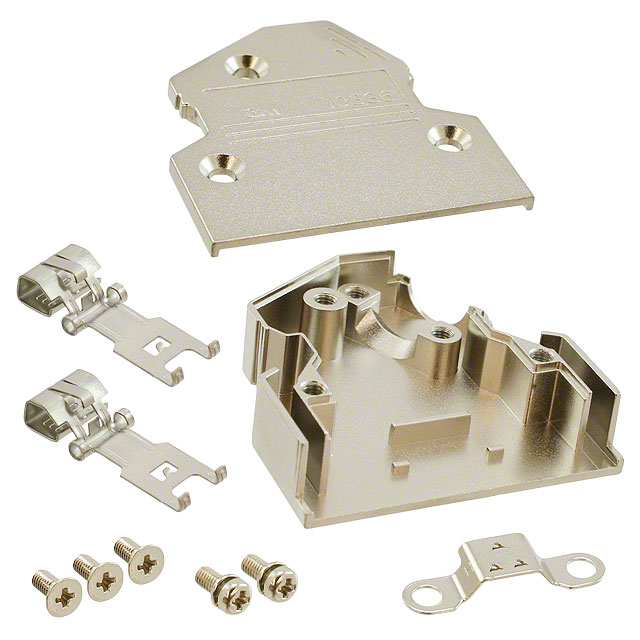

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 36 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Search across all available documentation for this part.
10336-C500-00
Active3M
CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 36 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10336-C500-00 | 10336 Series |
|---|---|---|
| Accessory Type | Two Piece Backshell | Two Piece Backshell, Two Piece Backshell and Cover |
| Cable Exit | 60 ° | 60 - 180 ° |
| Cable Type | Round | Round |
| Color | Silver | Silver, Black |
| Features | Latch Lock | Latch Lock |
| Hardware | - | Assembly Hardware |
| Material | Zinc Alloy | Aluminum, Zinc Alloy, Metal |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 36 | 36 |
| Plating | Nickel | Nickel |
| Primary Material | Metal | Metal |
| Shielding | Shielded | Shielded |
10336 Series
CONN BACKSHELL 36POS 60DEG SHLD
| Part | Shielding | Number of Positions | Accessory Type | Cable Type | Features | Material | Plating | Cable Exit | Color | Hardware | Primary Material | Material [custom] | Material [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shielded | 36 | Two Piece Backshell | Round | Latch Lock | Aluminum | Nickel | 60 ° | Silver | Assembly Hardware | Metal | |||
Shielded | 36 | Two Piece Backshell | Round | Latch Lock | Zinc Alloy | Nickel | 60 ° | Silver | Metal | ||||
Shielded | 36 | Two Piece Backshell and Cover | Round | Latch Lock | 180 ° | Black | Metal | Plastic, Steel | Metal | ||||
Shielded | 36 | Two Piece Backshell | Round | Latch Lock | Metal, Zinc Alloy | Nickel | 60 ° | Silver | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
10336 Series
36 Position Two Piece Backshell Connector Silver 60° Shielded
