10336-A500-00

Active

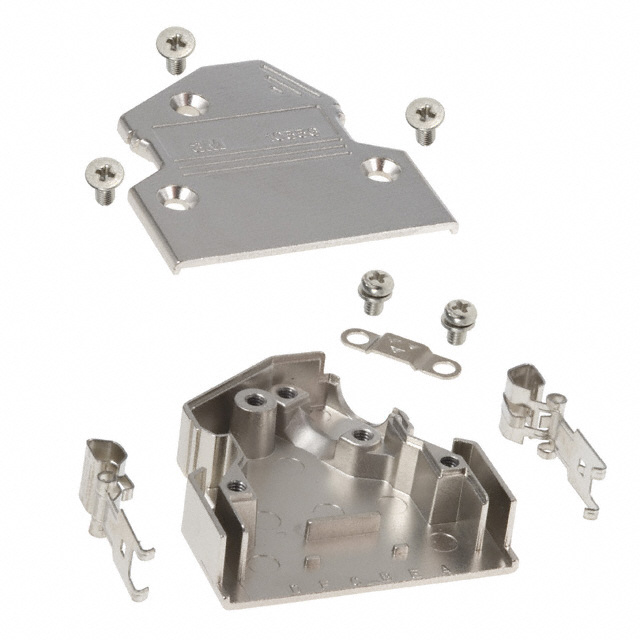

CONN BACKSHELL 36POS 60DEG SHLD

Search across all available documentation for this part.

Active

CONN BACKSHELL 36POS 60DEG SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10336-A500-00	10336 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	60 °	60 - 180 °
Cable Type	Round	Round
Color	Silver	Silver, Black
Features	Latch Lock	Latch Lock
Hardware	-	Assembly Hardware
Material	Zinc Alloy, Metal	Aluminum, Zinc Alloy, Metal
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	36	36
Plating	Nickel	Nickel
Primary Material	Metal	Metal
Shielding	Shielded	Shielded

CONN BACKSHELL 36POS 60DEG SHLD

Part	Shielding	Number of Positions	Accessory Type	Cable Type	Features	Material	Plating	Cable Exit	Color	Hardware	Primary Material	Material [custom]	Material [custom]
3M 10336-3540-010	Shielded	36	Two Piece Backshell	Round	Latch Lock	Aluminum	Nickel	60 °	Silver	Assembly Hardware	Metal
3M 10336-C500-00	Shielded	36	Two Piece Backshell	Round	Latch Lock	Zinc Alloy	Nickel	60 °	Silver		Metal
3M 10336-3210-006	Shielded	36	Two Piece Backshell and Cover	Round	Latch Lock			180 °	Black		Metal	Plastic, Steel	Metal
3M 10336-A500-00	Shielded	36	Two Piece Backshell	Round	Latch Lock	Metal, Zinc Alloy	Nickel	60 °	Silver		Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

36 Position Two Piece Backshell Connector Silver 60° Shielded
