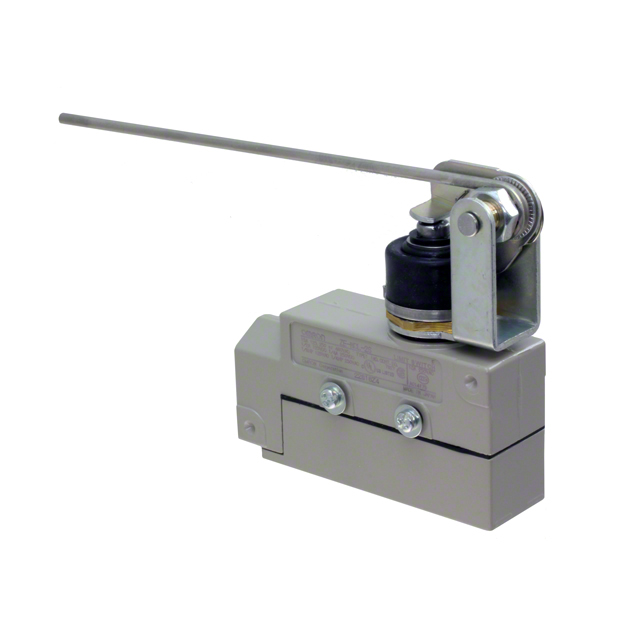

ZV-NA277-2S

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZV-NA277-2S

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	500000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	640 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Overtravel	0.235 in
Overtravel	6 mm
Pretravel	0.197 in
Pretravel	5 mm
Release Force	230 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Release Force	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)	Electrical Life	Operating Force	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Actuator Type	Mounting Type	Circuit	Mechanical Life	Differential Travel	Differential Travel	Termination Style	Pretravel	Pretravel	Operating Position	Operating Position
Omron Electronics Inc-EMC Div ZV-NA277-2S	230 gf	0.235 in	6 mm	80 C	-10 °C	IP65 - Dust Tight Water Resistant	15 A 500 mA	500000 Cycles	640 gf	125 VDC	On-Mom	125 V	Lever Roller	Chassis Mount	SPDT	10000000 Cycles	0.016 "	0.4 mm	Screw Terminal	0.197 in	5 mm
Omron Electronics Inc-EMC Div ZV-N-2S	240 gf	0.197 "	5 mm	80 C	-10 °C	IP65 - Dust Tight Water Resistant	15 A 500 mA	500000 Cycles	800 gf	125 VDC	On-Mom	125 V	Round (Pin Plunger)	Chassis Mount	SPDT	10000000 Cycles	0.004 in	0.1 mm	Screw Terminal	0.08 in	2 mm	71.4 mm	2.811 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.99

General part information

Switch SPDT Chassis Mount
