AS6/3

Active

Altech Corporation

SPRING CLAMP 1IN 2OUT 50A600V22-

Search across all available documentation for this part.

Active

Altech Corporation

SPRING CLAMP 1IN 2OUT 50A600V22-

Technical Specifications

Parameters and characteristics for this part

SPRING CLAMP 1IN 2OUT 50A600V22-

Part	Current - IEC	Material - Insulation	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Number of Levels	Current - UL	Color	Type	Voltage - IEC	Terminal - Width [y]	Termination Style	Stripping Length
Altech Corporation AS6/3	41 A	Polyamide (PA66), Nylon 6/6	0.2 mm²	6 mm²	600 V	1	50 A	Gray	Feed Through	800 V	8 mm	Push In, Spring	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

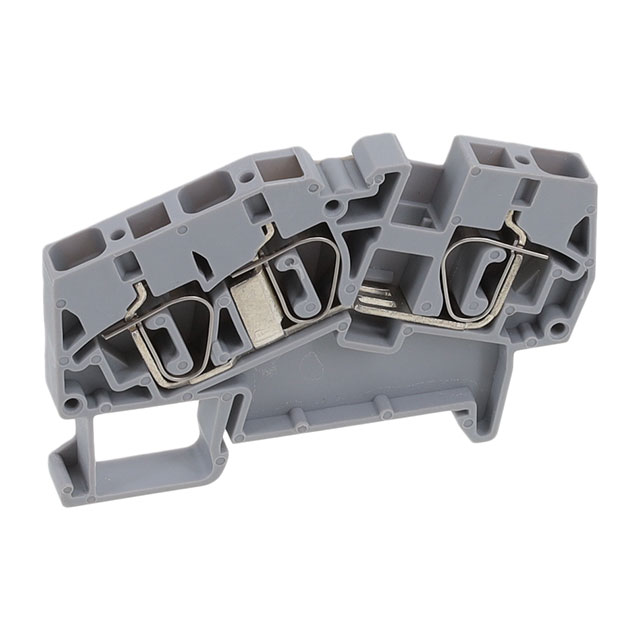

Terminal Block Connector 3 Position Feed Through Gray 8-22 AWG
