EH35MM2
ActiveSwitchcraft Inc.

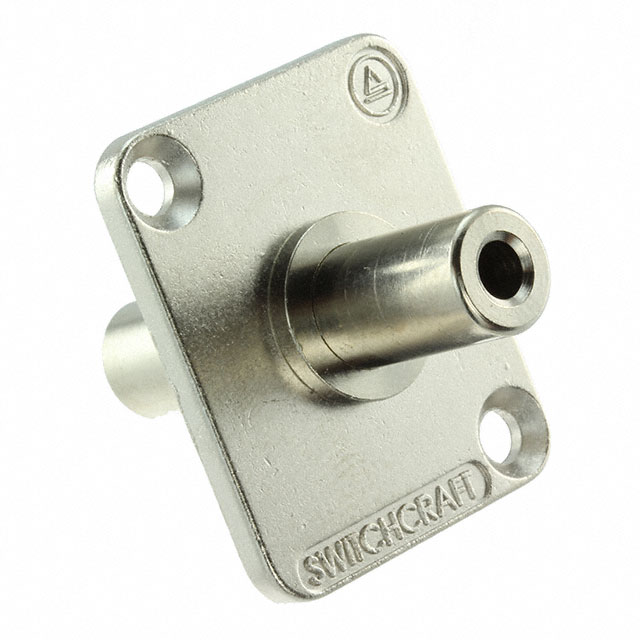

ADAPT 3.5MM JACK TO 3.5MM JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EH35MM2
ActiveSwitchcraft Inc.
ADAPT 3.5MM JACK TO 3.5MM JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EH35MM2 | EH35MM Series |
|---|---|---|
| Actual Diameter | - | 0.142 in |
| Actual Diameter | - | 3.6 mm |
| Body Color | - | Silver, Black |
| Body Finish | Nickel | Nickel |
| Body Material | Copper Alloy | Copper Alloy, Zinc Alloy |
| Connector Type | - | Phone Jack |
| Contact Material | - | Copper Alloy |
| Contact Material - Plating | - | Silver |
| Conversion Type | Same Series | Same Series |
| Convert From (Adapter End) | Phone Jack, Stereo | Phone Jack, Stereo |
| Convert From (Adapter End) | 0.125 " | 0.125 " |
| Convert From (Adapter End) | 3.5 mm | 3.5 mm |
| Convert From (Adapter End) | 0.141 " | 0.141 " |
| Convert To (Adapter End) | - | |
| Convert To (Adapter End) | Stereo, Phone Jack | Stereo, Phone Jack |
| Convert To (Adapter End) | 0.141 in | 0.141 in |
| Convert To (Adapter End) | 3.5 mm | 3.5 mm |
| Features | - | Mounting Hardware |
| Gender | Female to Female | Female to Female, Female |
| Housing Material | - | Thermoplastic |
| Includes | - | 2 Screws, 1 Connector, 1 Nut, 1 Housing |
| Industry Recognized Mating Diameter | - | 0.141 " |
| Industry Recognized Mating Diameter | - | 0.125 " |
| Industry Recognized Mating Diameter | - | 3.5 mm |
| Internal Switch(s) | - | False |
| Mounting Feature | Flange | Flange |
| Number of Positions/Contacts | 2 Conductors | 2 Conductors |
| Number of Positions/Contacts | - | 2 - 3 |
| Number of Positions/Contacts | - | 2 - 3 |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 60 °C |
| Panel Hole Size | - | 24 mm |
| Panel Hole Size | - | 0.945 in |
| Shielding | Unshielded | Unshielded |
| Signal Lines | - | Stereo, Mono |
EH35MM Series
ADAPT 3.5MM JACK TO 3.5MM JACK
| Part | Number of Positions/Contacts | Conversion Type | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Gender | Shielding | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Includes | Body Finish | Body Material | Features | Mounting Feature | Connector Type | Contact Material | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Signal Lines | Internal Switch(s) | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Body Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating [custom] | Actual Diameter [diameter] | Actual Diameter [diameter] | Panel Hole Size [diameter] | Panel Hole Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EH35MM2PKG | 2 Conductors | Same Series | Phone Jack, Stereo | 0.125 " | 3.5 mm | 0.141 " | Female to Female | Unshielded | Phone Jack, Stereo | 0.141 in | 3.5 mm | 1 Connector, 2 Screws | Nickel | Copper Alloy | Mounting Hardware | Flange | |||||||||||||||||||
Switchcraft Inc. EH35MMSSC | Female | Unshielded | 1 Connector, 1 Housing, 1 Nut | Zinc Alloy | Phone Jack | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Stereo | Thermoplastic | 3 | 3 | Silver | -10 °C | 60 °C | Silver | 0.142 in | 3.6 mm | 24 mm | 0.945 in | ||||||||||||||
Switchcraft Inc. EH35MM2B | 2 Conductors | Same Series | Phone Jack, Stereo | 0.125 " | 3.5 mm | 0.141 " | Female to Female | Unshielded | Phone Jack, Stereo | 0.141 in | 3.5 mm | Nickel | Copper Alloy | Flange | |||||||||||||||||||||
Switchcraft Inc. EH35MM2 | 2 Conductors | Same Series | Phone Jack, Stereo | 0.125 " | 3.5 mm | 0.141 " | Female to Female | Unshielded | Phone Jack, Stereo | 0.141 in | 3.5 mm | Nickel | Copper Alloy | Flange | |||||||||||||||||||||
Switchcraft Inc. EH35MMMSCB | Female | Unshielded | 1 Connector, 1 Housing, 1 Nut | Zinc Alloy | Phone Jack | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Mono | Thermoplastic | 2 | 2 | Black, Silver | -10 °C | 60 °C | Silver | 0.142 in | 3.6 mm | 24 mm | 0.945 in | ||||||||||||||
Switchcraft Inc. EH35MMSSCB | Female | Unshielded | 1 Connector, 1 Housing, 1 Nut | Zinc Alloy | Phone Jack | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Stereo | Thermoplastic | 3 | 3 | Black, Silver | -10 °C | 60 °C | Silver | 0.142 in | 3.6 mm | 24 mm | 0.945 in |
