EH35MM2PKG

Active

Switchcraft Inc.

ADAPT 3.5MM JACK TO 3.5MM JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EH35MM2PKG

Active

Switchcraft Inc.

ADAPT 3.5MM JACK TO 3.5MM JACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.04

Description

General part information

EH35MM Series

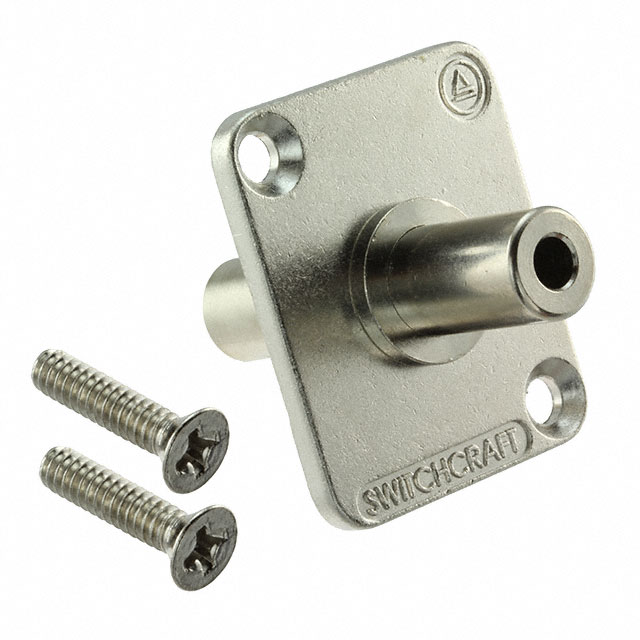

Adapter Connector Phone Jack, Stereo, 3.50mm (0.141", 1/8") To Phone Jack, Stereo, 3.50mm (0.141", 1/8") Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EH35MM2PKG	EH35MM Series

Actual Diameter	-	0.142 in
Actual Diameter	-	3.6 mm
Body Color	-	Silver, Black
Body Finish	Nickel	Nickel
Body Material	Copper Alloy	Copper Alloy, Zinc Alloy
Connector Type	-	Phone Jack
Contact Material	-	Copper Alloy
Contact Material - Plating	-	Silver
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Phone Jack, Stereo	Phone Jack, Stereo
Convert From (Adapter End)	0.125 "	0.125 "
Convert From (Adapter End)	3.5 mm	3.5 mm
Convert From (Adapter End)	0.141 "	0.141 "
Convert To (Adapter End)		-
Convert To (Adapter End)	Stereo, Phone Jack	Stereo, Phone Jack
Convert To (Adapter End)	0.141 in	0.141 in
Convert To (Adapter End)	3.5 mm	3.5 mm
Features	Mounting Hardware	Mounting Hardware
Gender	Female to Female	Female to Female, Female
Housing Material	-	Thermoplastic
Includes	2 Screws, 1 Connector	2 Screws, 1 Connector, 1 Nut, 1 Housing
Industry Recognized Mating Diameter	-	0.141 "
Industry Recognized Mating Diameter	-	0.125 "
Industry Recognized Mating Diameter	-	3.5 mm
Internal Switch(s)	-	False
Mounting Feature	Flange	Flange
Number of Positions/Contacts	2 Conductors	2 Conductors
Number of Positions/Contacts	-	2 - 3
Number of Positions/Contacts	-	2 - 3
Operating Temperature	-	-10 °C
Operating Temperature	-	60 °C
Panel Hole Size	-	24 mm
Panel Hole Size	-	0.945 in
Shielding	Unshielded	Unshielded
Signal Lines	-	Stereo, Mono

EH35MM Series

ADAPT 3.5MM JACK TO 3.5MM JACK

Part	Number of Positions/Contacts	Conversion Type	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Gender	Shielding	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Includes	Body Finish	Body Material	Features	Mounting Feature	Connector Type	Contact Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Signal Lines	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]
Switchcraft Inc. EH35MM2PKG	2 Conductors	Same Series	Phone Jack, Stereo	0.125 "	3.5 mm	0.141 "	Female to Female	Unshielded	Phone Jack, Stereo	0.141 in	3.5 mm	1 Connector, 2 Screws	Nickel	Copper Alloy	Mounting Hardware	Flange
Switchcraft Inc. EH35MMSSC							Female	Unshielded				1 Connector, 1 Housing, 1 Nut		Zinc Alloy			Phone Jack	Copper Alloy	0.141 "	0.125 "	3.5 mm	Stereo	Thermoplastic	3	3	Silver	-10 °C	60 °C	Silver	0.142 in	3.6 mm	24 mm	0.945 in
Switchcraft Inc. EH35MM2B	2 Conductors	Same Series	Phone Jack, Stereo	0.125 "	3.5 mm	0.141 "	Female to Female	Unshielded	Phone Jack, Stereo	0.141 in	3.5 mm		Nickel	Copper Alloy		Flange
Switchcraft Inc. EH35MM2	2 Conductors	Same Series	Phone Jack, Stereo	0.125 "	3.5 mm	0.141 "	Female to Female	Unshielded	Phone Jack, Stereo	0.141 in	3.5 mm		Nickel	Copper Alloy		Flange
Switchcraft Inc. EH35MMMSCB							Female	Unshielded				1 Connector, 1 Housing, 1 Nut		Zinc Alloy			Phone Jack	Copper Alloy	0.141 "	0.125 "	3.5 mm	Mono	Thermoplastic	2	2	Black, Silver	-10 °C	60 °C	Silver	0.142 in	3.6 mm	24 mm	0.945 in
Switchcraft Inc. EH35MMSSCB							Female	Unshielded				1 Connector, 1 Housing, 1 Nut		Zinc Alloy			Phone Jack	Copper Alloy	0.141 "	0.125 "	3.5 mm	Stereo	Thermoplastic	3	3	Black, Silver	-10 °C	60 °C	Silver	0.142 in	3.6 mm	24 mm	0.945 in
