9912-100
ActiveBivar Inc.

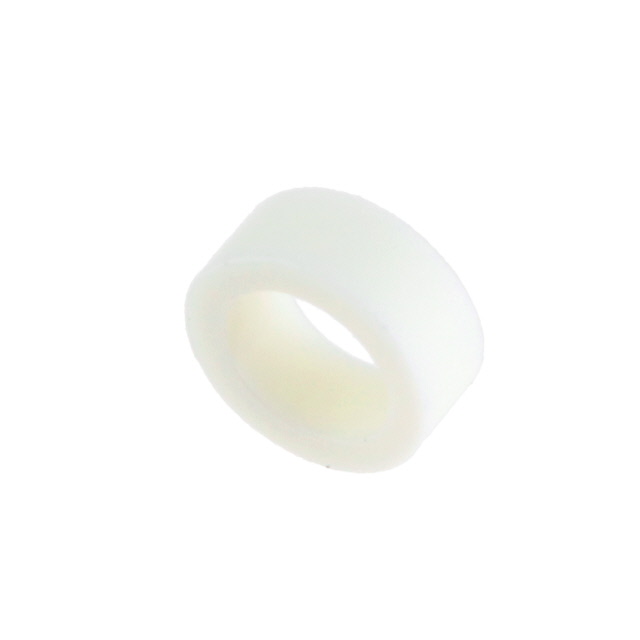

NYLON TUBULAR, 0.100 IN. LENGTH, 0.250 OD, 0.171 ID, #8 SCREW SIZE, WHITE / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9912-100
ActiveBivar Inc.
NYLON TUBULAR, 0.100 IN. LENGTH, 0.250 OD, 0.171 ID, #8 SCREW SIZE, WHITE / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9912-100 |
|---|---|
| Between Board Height | 2.54 mm |
| Between Board Height | 0.1 in |
| Color | Natural |
| Diameter - Inside [diameter] | 4.34 mm |
| Diameter - Inside [diameter] | 0.171 in |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall [x] | 0.1 " |
| Length - Overall [x] | 2.54 mm |
| Material | Nylon |
| Screw, Thread Size | #8 |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
9912-100 Series
Round Spacer Unthreaded #8 Nylon 0.100" (2.54mm) Natural
Documents
Technical documentation and resources
