RN112BPC

Active

Switchcraft Inc.

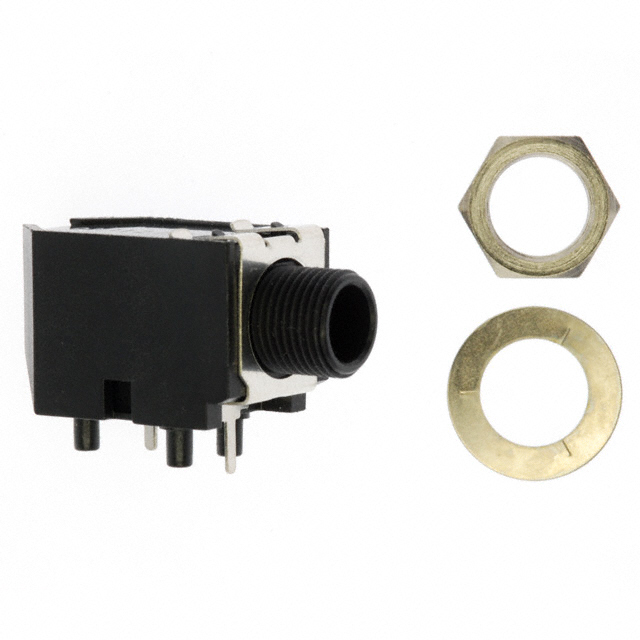

CONN 1/4" PHONE JACK F 3 POS 7.62MM SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 1/4" PHONE JACK F 3 POS 7.62MM SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	RN112BPC

Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Features	Mounting Hardware
Gender	Female
Housing Material	Thermoplastic
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Thread Size	3/8"-32

CONN 1/4" PHONE JACK F 3 POS 7.62MM SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT

Part	Signal Lines	Gender	Thread Size	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Internal Switch(s)	Housing Material	Mounting Type	Contact Material	Shielding	Termination	Contact Material - Plating [custom]	Connector Type	Includes	Panel Hole Size	Panel Hole Size
Switchcraft Inc. RN112BPC	Stereo	Female	3/8"-32	Black	3	3	Mounting Hardware		Thermoplastic	Through Hole, Right Angle	Copper Alloy	Unshielded	Solder	Silver	Phone Jack	Connector, Nut, Washer	0.375 in	9.52 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
