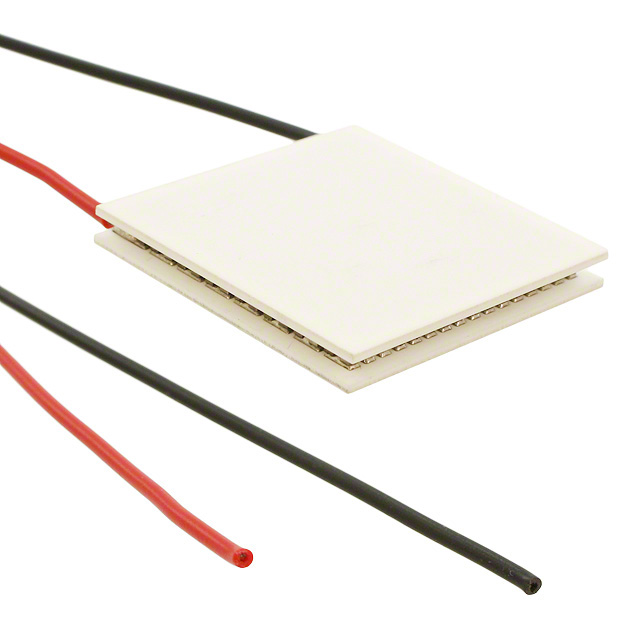

Specification	7940002-604

Current - Max	3.9 A
Delta Tmax	74 °C
Features	Silicone RTV, Lead Wires, Sealed
Height	3.61 mm
Maximum Power Dissipation (Qmax)	35 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	3.44 Ohms
Size / Dimension Length	30 mm
Size / Dimension Shape	Square
Size / Dimension Width	30 mm
Voltage - Max	16.4 V

7940002 Series

Part	Features	Voltage - Max	Number of Stages	Resistance	Height	Delta Tmax	Operating Temperature	Maximum Power Dissipation (Qmax)	Current - Max	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length
Laird Thermal Systems, Inc. 7940002-604	Lead Wires Sealed Silicone RTV	16.4 V	1	3.44 Ohms	3.61 mm	74 °C	80 °C	35 W	3.9 A	30 mm	Square	30 mm
Laird Thermal Systems, Inc. 7940002-601	Lead Wires Non-Sealed	16.4 V	1	3.44 Ohms	3.61 mm	74 °C	80 °C	35 W	3.9 A	30 mm	Square	30 mm
Laird Thermal Systems, Inc. 7940002-603	Epoxy Lead Wires Sealed	16.4 V	1	3.44 Ohms	3.61 mm	74 °C	80 °C	35 W	3.9 A	30 mm	Square	30 mm
