3808-0-15-01-02-27-10-0

Active

Mill-Max Manufacturing Corp.

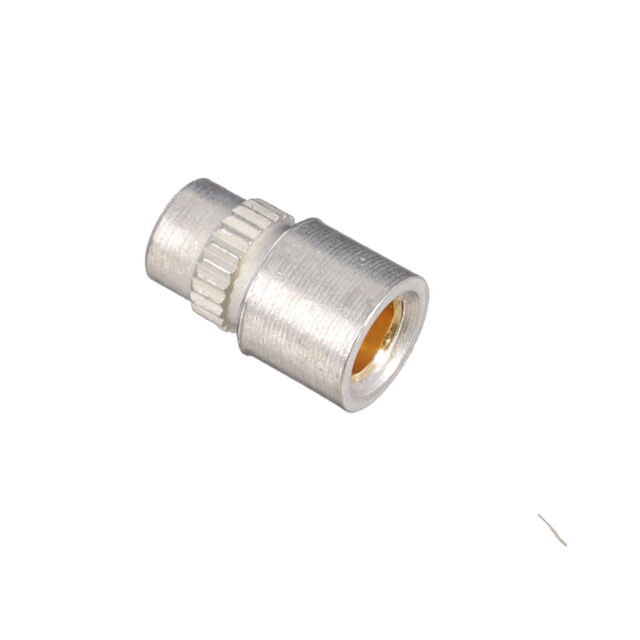

CONN RECEPT PIN .040-.050" .175"

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .040-.050" .175"

Technical Specifications

Parameters and characteristics for this part

Specification	3808-0-15-01-02-27-10-0

Accepts Pin Diameter [Max]	0.05 in
Accepts Pin Diameter [Max]	1.27 mm
Accepts Pin Diameter [Min]	1.02 mm
Accepts Pin Diameter [Min]	0.04 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.67 mm
Flange Diameter [diameter]	0.105 in
Length - Overall [x]	4.45 mm
Length - Overall [x]	0.175 in
Mounting Hole Diameter [diameter]	0.09 in
Mounting Hole Diameter [diameter]	2.29 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.73 mm
Pin Hole Diameter [diameter]	0.068 in
Socket Depth	4.45 mm
Socket Depth	0.175 in
Tail Type	No Tail
Termination	Knurled, Press-Fit

Part	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
Mill-Max Manufacturing Corp. 3808-0-15-01-02-14-10-0	Gold	1.73 mm	0.068 in	10 Áin	0.25 Ám	No Tail	2.67 mm	0.105 in	4.45 mm	0.175 in	1.02 mm	0.05 in	0.04 "	1.27 mm	4.45 mm	0.175 in	0.09 in	2.29 mm	Knurled Press-Fit	-55 °C	125 °C	Beryllium Copper
Mill-Max Manufacturing Corp. 3808-0-15-01-02-27-10-0	Gold	1.73 mm	0.068 in	30 Áin	0.76 Ám	No Tail	2.67 mm	0.105 in	4.45 mm	0.175 in	1.02 mm	0.05 in	0.04 "	1.27 mm	4.45 mm	0.175 in	0.09 in	2.29 mm	Knurled Press-Fit	-55 °C	125 °C	Beryllium Copper
Mill-Max Manufacturing Corp. 3808-0-15-15-02-27-10-0	Gold	1.73 mm	0.068 in	30 Áin	0.76 Ám	No Tail	2.67 mm	0.105 in	4.45 mm	0.175 in	1.02 mm	0.05 in	0.04 "	1.27 mm	4.45 mm	0.175 in	0.09 in	2.29 mm	Knurled Press-Fit	-55 °C	125 °C	Beryllium Copper
Mill-Max Manufacturing Corp. 3808-0-15-80-02-27-10-0	Gold	1.73 mm	0.068 in	30 Áin	0.76 Ám	No Tail	2.67 mm	0.105 in	4.45 mm	0.175 in	1.02 mm	0.05 in	0.04 "	1.27 mm	4.45 mm	0.175 in	0.09 in	2.29 mm	Knurled Press-Fit	-55 °C	125 °C	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Press-Fit, Knurled
