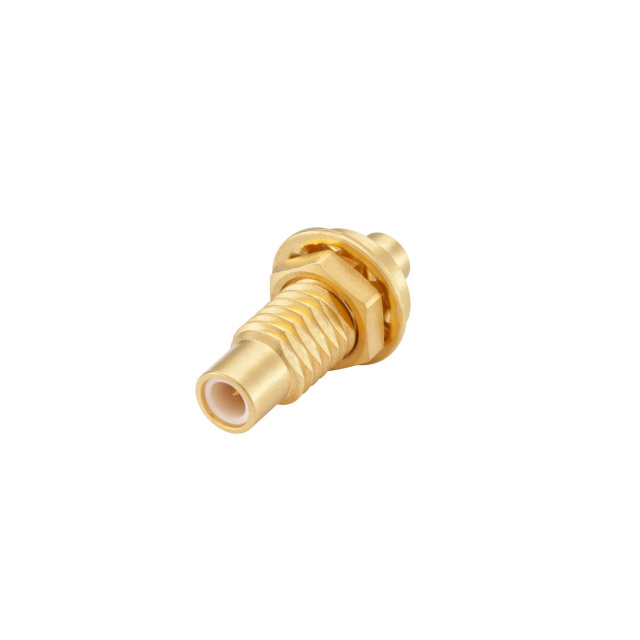

39S501-271L5

Active

Rosenberger

RF SMC CONNECTOR, 1 CONTACT(S), MALE, PANEL MOUNT, CABLE MOUNT, LOCKING, PLUG, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMC CONNECTOR, 1 CONTACT(S), MALE, PANEL MOUNT, CABLE MOUNT, LOCKING, PLUG, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	39S501-271L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Body Finish	Impedance	Dielectric Material	Shield Termination	Number of Ports	Body Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Contact Termination	Mounting Feature	Connector Style	Center Contact Material	Frequency - Max [Max]	Connector Type	Mating Cycles	Voltage Rating	Center Contact Plating
Rosenberger 39S501-271L5	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Solder	1	Brass	Gold	155 °C	-55 °C	RG-405 (.085" Semi Rigid)	Solder	Bulkhead - Rear Side Nut	SMC	Brass	6000 MHz	Male Pin Plug	500	250 VDC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMC Connector Plug, Male Pin 50 Ohms Panel Mount Solder
