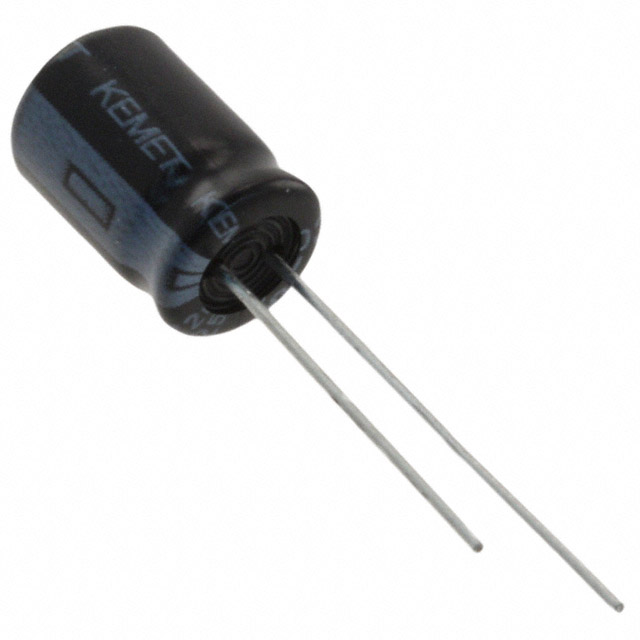

ESK108M6R3AG3AA

Active

KEMET

CAP ALUM 1000UF 20% 6.3V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 20% 6.3V RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Capacitance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Tolerance	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESK108M025AH4AA	85 °C	-40 °C	874 mA	1000 µF	5 mm	0.197 in	2000 Hrs	25 VDC	10 mm	0.394 in	760 mA	Polar	21 mm	0.827 "	Radial Can	20 %	General Purpose	Through Hole
KEMET ESK108M035AL3AA	85 °C	-40 °C	1.093 A	1000 µF	5 mm	0.197 in	2000 Hrs	35 V	13 mm	0.512 in	950 mA	Polar	22 mm	0.866 in	Radial Can	20 %	General Purpose	Through Hole
KEMET ESK108M6R3AG3AA	85 °C	-40 °C		1000 µF	3.5 mm	0.138 in	2000 Hrs	6.3 V	8 mm	0.315 "		Polar			Radial Can	20 %	General Purpose	Through Hole	0.492 in	12.5 mm
KEMET ESK108M010AH2AA	85 °C	-40 °C		1000 µF	5 mm	0.197 in	2000 Hrs	10 V	10 mm	0.394 in		Polar	17 mm	0.669 in	Radial Can	20 %	General Purpose	Through Hole
KEMET ESK108M016AH2AA	85 °C	-40 °C	724.5 mA	1000 µF	5 mm	0.197 in	2000 Hrs	16 V	10 mm	0.394 in	630 mA	Polar	17 mm	0.669 in	Radial Can	20 %	General Purpose	Through Hole
KEMET ESK108M025AH4EA	85 °C	-40 °C	874 mA	1000 µF	5 mm	0.197 in	2000 Hrs	25 VDC	10 mm	0.394 in	760 mA	Polar	21 mm	0.827 "	Radial Can	20 %	General Purpose	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
