S70GL02GS12FHIV20

Active

Infineon Technologies

FLASH MEMORY, PARALLEL NOR, 2 GBIT, 256M X 8BIT, CFI, PARALLEL, FBGA, 64 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S70GL02GS12FHIV20

Active

Infineon Technologies

FLASH MEMORY, PARALLEL NOR, 2 GBIT, 256M X 8BIT, CFI, PARALLEL, FBGA, 64 PINS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S70GL02GS12FHIV20

Access Time	120 ns
Memory Format	FLASH
Memory Interface	Parallel
Memory Organization	128 M
Memory Size	2 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

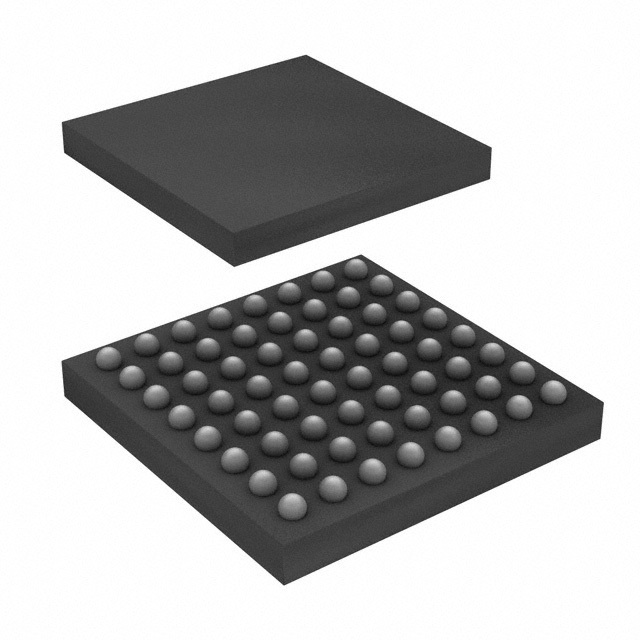

Package / Case	64-LBGA
Supplier Device Package	64-FBGA (13x11)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.65 V

S70GL02 Series

Part	Access Time	Memory Organization	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Memory Format	Supplier Device Package	Memory Interface	Memory Size	Mounting Type	Package / Case	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization
Infineon Technologies S70GL02GT12FHBV20	120 ns	128 M x 16 256 M x 8	2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	Parallel	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S70GL02GT11FHB023	110 ns	128 M x 16 256 M x 8	2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	Parallel	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S70GL02GS12FHIV23	120 ns	128 M	1.65 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	Parallel	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR	85 °C	-40 °C
Infineon Technologies S70GL02GT11FHV010	110 ns	128 M x 16 256 M x 8	2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (11x13)	Parallel	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S70GL02GT12FHVV20	120 ns		2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	CFI	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR (SLC)	105 °C	-40 °C	256M x 8
Infineon Technologies S70GL02GT12FHVV23	120 ns		2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	CFI	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR (SLC)	105 °C	-40 °C	256M x 8
Infineon Technologies S70GL02GT12FHBV23	120 ns	128 M x 16 256 M x 8	2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	Parallel	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S70GL02GT11FHV020	110 ns		2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	CFI	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR (SLC)	105 °C	-40 °C	256M x 8
Infineon Technologies S70GL02GT11FHI020	110 ns		2.7 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	CFI	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR (SLC)	85 °C	-40 °C	256M x 8
Infineon Technologies S70GL02GS12FHIV20	120 ns	128 M	1.65 V	3.6 V	Non-Volatile	FLASH	64-FBGA (13x11)	Parallel	2 Gbit	Surface Mount	64-LBGA	FLASH - NOR	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 24.14
		5	$ 23.91
		10	$ 22.56
Digikey	Tray	1	$ 26.10
		10	$ 24.31
		25	$ 24.05
		40	$ 23.46
		180	$ 20.59
		360	$ 19.90
Newark	Each	1	$ 24.56
		5	$ 23.32
		10	$ 22.07
		25	$ 20.55
		50	$ 20.53
		100	$ 17.51
		250	$ 17.32

Description

General part information

S70GL02 Series

S70GL02GS12FHIV20 is a 2-Gigabit MirrorBit® flash memory device. It is fabricated using 65nm MirrorBit Eclipse process technology. This device offers a fast page access time of 25ns with a corresponding random access time of 120ns. It features a write buffer that allows a maximum of 256 words/512 bytes to be programmed in one operation, resulting in faster effective programming time than standard single-byte/word programming algorithms. This makes the device an ideal product for today’s embedded applications that require higher density, better performance, and lower power consumption.
