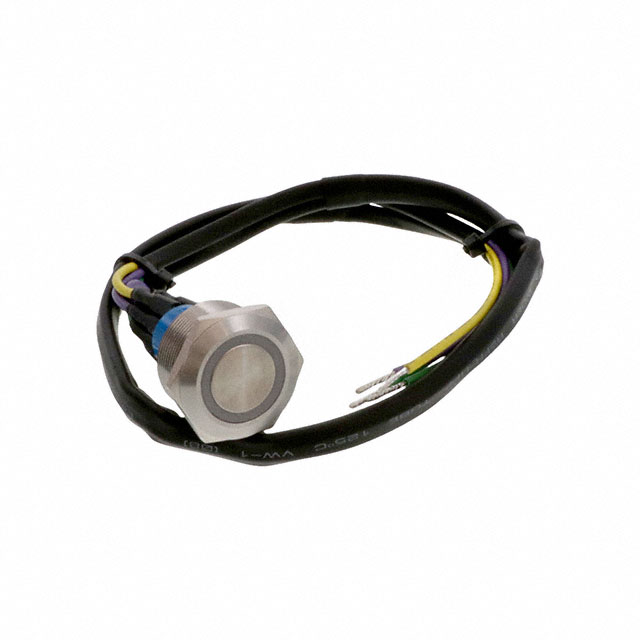

AV2521000T5Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	AV2521000T5Q04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-On
Termination Style	Wire Leads
Type	Anti-Vandal
Voltage Rating - AC	250 V

Part	Current Rating (Amps)	Mechanical Life	Mounting Type	Color - Actuator/Cap	Ingress Protection	Switch Function	Circuit	Electrical Life	Type	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Marking	Voltage Rating - AC	Termination Style
TE Connectivity Raychem Cable Protection AV2521000T5Q04	3 A	500000 Cycles	Panel Mount Front	Silver	IP67 - Dust Tight Waterproof	On-On	DPDT	50000 Cycles	Anti-Vandal	55 °C	-20 C	25.2 mm	Button Flush Round	No Marking	250 V	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Anti-Vandal Panel Mount, Front
