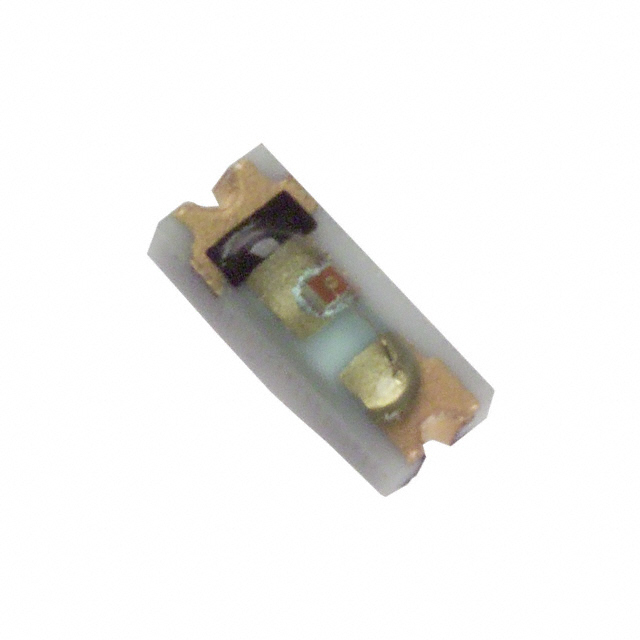

CCL-LX45GT

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green LED Indication - Discrete 2.2V 2-SMD, No Lead

Technical documentation and resources

Part	Mounting Type	Lens Color	Current - Test	Configuration	Wavelength - Peak	Supplier Device Package	Color	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Package / Case	Height (Max) [Max]	Viewing Angle	Lens Style	Lens Transparency
Lumex Opto/Components Inc. CCL-LX45YT	Surface Mount	Yellow	20 mA	Standard	585 nm	SMD	Yellow	7 mcd	3.2 mm	0.05 "	2.3 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
Lumex Opto/Components Inc. CCL-LX45SRT	Surface Mount	Red	20 mA	Standard	660 nm	SMD	Red	8 mcd	3.2 mm	0.05 "	1.8 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
Lumex Opto/Components Inc. CCL-LX45GT	Surface Mount	Green	20 mA	Standard	565 nm	SMD	Green	7 mcd	3.2 mm	0.05 "	2.2 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
Lumex Opto/Components Inc. CCL-LX45IT	Surface Mount	Red	20 mA	Standard	635 nm	SMD	Red		3.2 mm	0.05 "	2.1 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
