SGSSP2-500Q88

Active

BANNER ENGINEERING

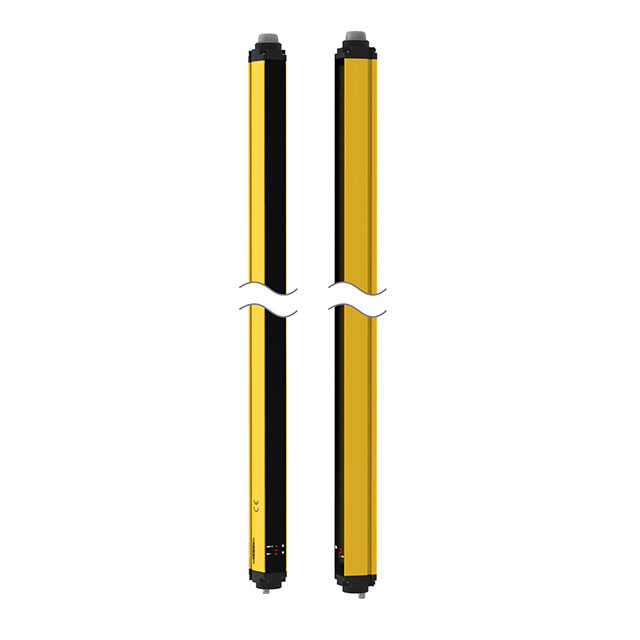

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	SGSSP2-500Q88

Beam Pitch	500 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	2
Operating Range [Max]	30 m
Operating Range [Min]	0.5 m
Protective Height [z]	500 mm
Voltage - Supply	24 VDC

Part	Voltage - Supply	Operating Range [Min]	Operating Range [Max]	Number of Beams	Beam Pitch	Ingress Protection	Protective Height [z]
BANNER ENGINEERING SGSSP2-500Q88	24 VDC	0.5 m	30 m	2	500 mm	IP65 - Dust Tight Water Resistant	500 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1247.01
Newark	Each	1	$ 1269.00

General part information

Light Curtain

Technical documentation and resources

No documents available
