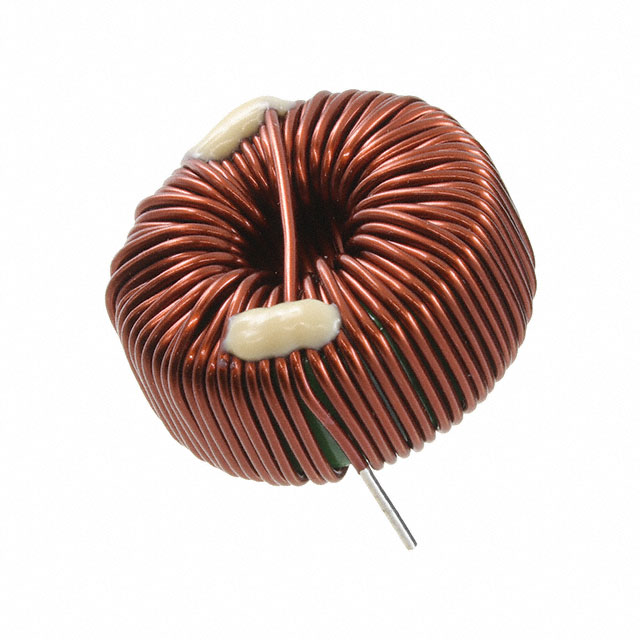

SN14P-770H - SN14P-770H

SN14P-770H

Active
KEMET

NMC 550.0UH 3.0A 0.0850 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSN14P-770HDatasheet+1
SN14P-770H - SN14P-770H

SN14P-770H

Active
KEMET

NMC 550.0UH 3.0A 0.0850 OHM TH

Deep-Dive with AI

DocumentsSN14P-770HDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSN14P-770H
Filter TypePower Line
Inductance @ Frequency550 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-25 °C
Package / CaseVertical, No Base
Package / Case2 Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 150$ 4.62
NewarkEach 1$ 8.55
10$ 6.34
25$ 5.88
50$ 5.40
100$ 4.80
250$ 4.77
500$ 4.73

Description

General part information

SN14P Series

550 µH @ 100 kHz 2 Line Common Mode Choke Through Hole DCR
