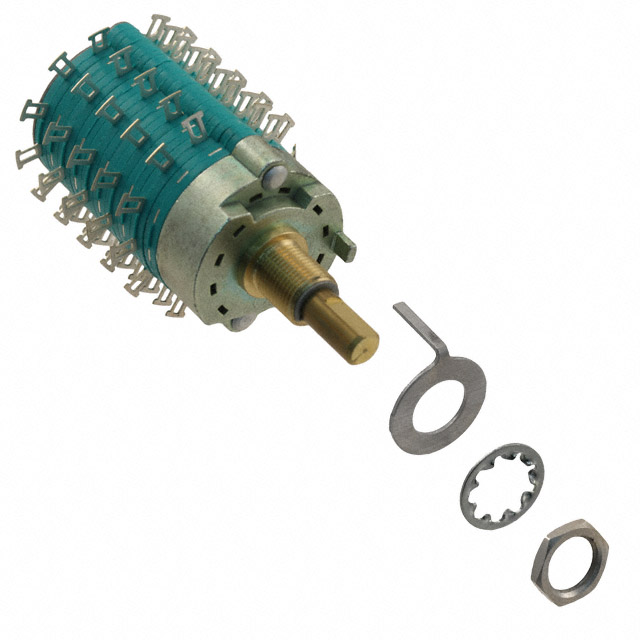

C4D1006N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 300MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C4D1006N-A

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	300 mA, 500 mA
Depth Behind Panel [z]	48.97 mm
Index Stops	Adjustable
Number of Decks	5
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Termination Style	Actuator Length [x]	Number of Poles per Deck	Index Stops	Contact Finish	Actuator Type [diameter]	Actuator Type	Circuit per Deck [custom]	Number of Positions [Max]	Number of Positions [Min]	Contact Material	Number of Decks	Voltage Rating - DC	Voltage Rating - AC	Contact Timing	Angle of Throw	Current Rating (Amps)	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]
ELECTROSWITCH C4D1006N-A	Solder Lug	0.5 in	2	Adjustable	Silver	6.35 mm	Flatted	DP6T	6	2	Brass	5	28 V	125 V	Non-Shorting	30 °	300 mA 500 mA	48.97 mm	9.78 mm
