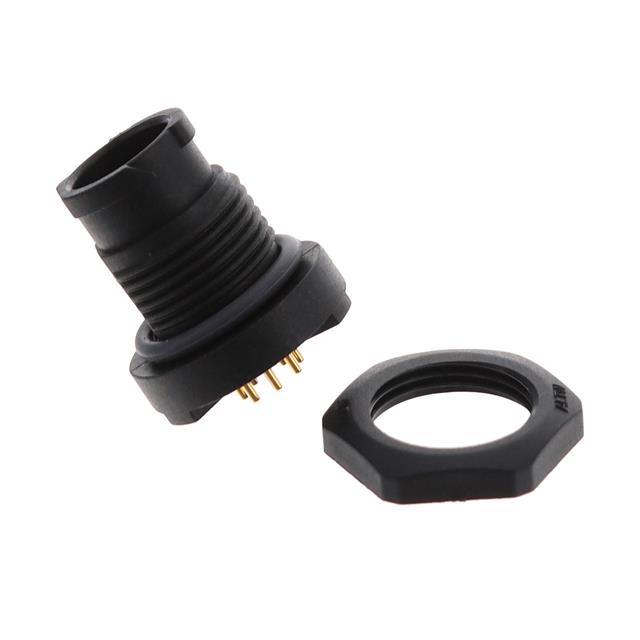

AU-08PMMP-QC8001
ActiveAmphenol LTW
CONN RCPT MALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AU-08PMMP-QC8001
ActiveAmphenol LTW
CONN RCPT MALE 8POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AU-08PMMP-QC8001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 8 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.90 | |
| 10 | $ 8.91 | |||
| 30 | $ 8.39 | |||
| 40 | $ 8.18 | |||
| 80 | $ 7.96 | |||
| 230 | $ 7.10 | |||
| 440 | $ 6.67 | |||
| 950 | $ 5.89 | |||
Description
General part information
AU-08PMMP Series
8 (Data) Position Circular Connector Receptacle, Male Pins Solder
