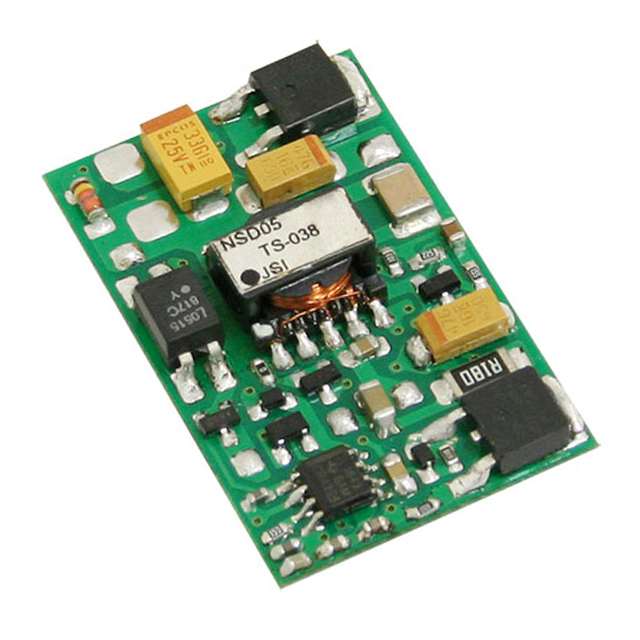

NSD05-48S3
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 3.3V 4W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSD05-48S3
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 3.3V 4W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSD05-48S3 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | 75 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 4 W |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.76 | |
| 5 | $ 10.14 | |||
| 10 | $ 9.89 | |||
Description
General part information
NSD05 Series
Isolated Module DC DC Converter 1 Output 3.3V 1.2A 18V - 72V Input
