18628.6

Active

Pflitsch

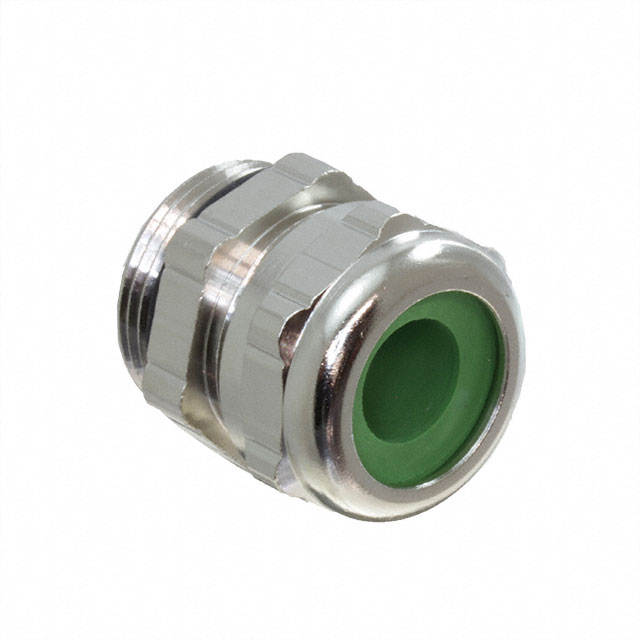

CABLE GLAND 6.86-10.41MM PG16

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 6.86-10.41MM PG16

Technical Specifications

Parameters and characteristics for this part

Specification	18628.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	0.41 in
Outside Cable Diameter (Max) [Max]	10.41 mm
Outside Cable Diameter (Min) [Min] [diameter]	6.86 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.27 in
Thread Length	0.26 in
Thread Length	6.6 mm
Thread Size	PG16
Type	Cable Gland

Part	Thread Length	Thread Length	Material	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Ingress Protection	Thread Size	Type	Includes
Pflitsch 18628.6	0.26 in	6.6 mm	Brass Nickel Plated	-40 °C	300 °C	6.86 mm	0.27 in	0.41 in	10.41 mm	Silver	IP68 - Dust Tight Waterproof; NEMA 4X	PG16	Cable Gland	Sealing Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.97

General part information

Cable Gland Brass, Nickel Plated PG16 Silver

Technical documentation and resources

No documents available
