5380-4PG-524
ActiveConxall/Switchcraft

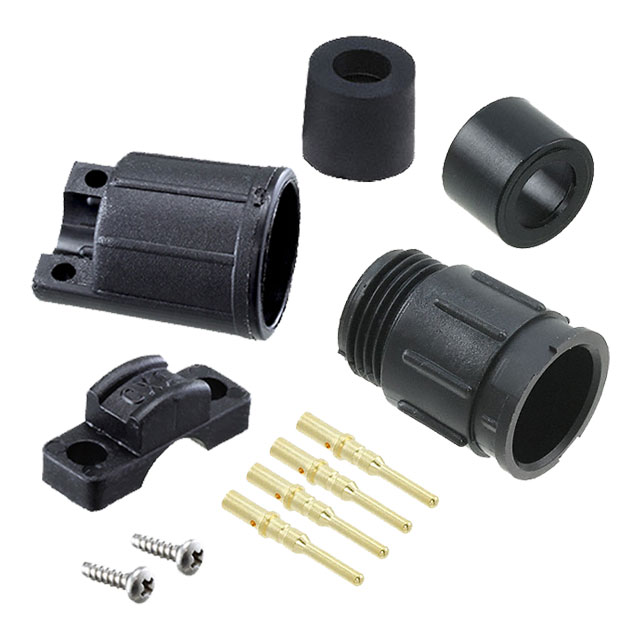

CONN RCPT MALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5380-4PG-524
ActiveConxall/Switchcraft
CONN RCPT MALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5380-4PG-524 | 5380-4PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening | - | 8.13 mm |
| Cable Opening [Max] [diameter] | 6.86 mm | 6.86 - 7.37 mm |
| Cable Opening [Max] [diameter] | 0.27 in | 0.27 - 0.32 in |
| Cable Opening [Min] [diameter] | 0.24 in | 0.24 - 0.3 in |
| Cable Opening [Min] [diameter] | 6.1 mm | 6.1 - 7.62 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Backshell, Cable Clamp |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
5380-4PG Series
CONN RCPT MALE 4POS GOLD CRIMP
| Part | Features | Ingress Protection | Shielding | Contact Material | Orientation | Contact Finish - Mating | Backshell Material, Plating | Number of Positions | Primary Material | Termination | Connector Type | Voltage Rating | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Fastening Type | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5380-4PG-324 | Backshell | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | 0.24 in | 6.86 mm | 6.1 mm | 0.27 in | Bayonet Lock | |||||
Conxall/Switchcraft 5380-4PG-528 | Backshell, Cable Clamp | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | 0.28 in | 7.37 mm | 7.11 mm | 0.29 in | Bayonet Lock | |||||
Conxall/Switchcraft 5380-4PG-318 | Backshell | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | Bayonet Lock | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||
Conxall/Switchcraft 5380-4PG-328 | Backshell | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | 0.28 in | 7.37 mm | 7.11 mm | 0.29 in | Bayonet Lock | |||||
Conxall/Switchcraft 5380-4PG-330 | Backshell | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | 0.3 in | 7.62 mm | 0.32 in | Bayonet Lock | 8.13 mm | |||||
Conxall/Switchcraft 5380-4PG-530 | Backshell, Cable Clamp | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | 0.3 in | 7.62 mm | 0.32 in | Bayonet Lock | 8.13 mm | |||||
Conxall/Switchcraft 5380-4PG-518 | Backshell, Cable Clamp | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | Bayonet Lock | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||
Conxall/Switchcraft 5380-4PG-524 | Backshell, Cable Clamp | Weathertight | Unshielded | Brass | Keyed | Gold | Nylon, Polyamide (PA) | 4 | Plastic | Crimp | Male Pins, Receptacle | 600 V | Black | Free Hanging (In-Line) | -40 °C | 115 °C | 0.24 in | 6.86 mm | 6.1 mm | 0.27 in | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.69 | |
Description
General part information
5380-4PG Series
4 Position Circular Connector Receptacle, Male Pins Crimp
