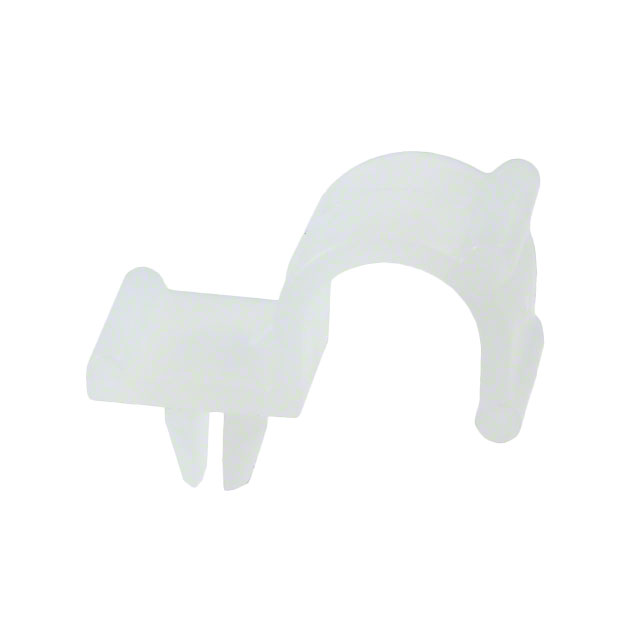

HURC-3-01

Active

Essentra Access Solutions

CBL CLIP U-TYPE NATURAL PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP U-TYPE NATURAL PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	HURC-3-01

Bundle Center to Mounting Center [x]	0.24 in
Bundle Center to Mounting Center [x]	6.1 mm
Color	Natural
Height [z]	6.1 mm
Height [z]	0.24 in
Length [x]	0.56 in
Length [x]	14.22 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [custom]	0.187 in
Opening Size [custom]	4.75 mm
Panel Hole Size [diameter]	3.18 mm
Panel Hole Size [diameter]	0.125 in
Panel Thickness [custom]	0.062 in
Panel Thickness [custom]	1.57 mm
Type Attributes	Half
Width	7.62 mm
Width [x]	0.3 "

Part	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Length	Length	Material	Material Flammability Rating	Color	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Type Attributes	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Width [x]	Width	Opening Size [diameter]	Opening Size	Height [z]	Height [z]	Length [x]	Length [x]	Opening Size [custom]	Opening Size [custom]
Essentra Access Solutions HURC-4-01	0.27 in	6.86 mm	15.75 mm	0.62 in	Polyamide (PA66) Nylon 6/6	UL94 V-2	Natural	Push In	0.062 in	1.57 mm	Half	3.18 mm	0.125 in	0.3 "	7.62 mm	0.25 in	6.35 mm
Essentra Access Solutions HURC-3-01	0.24 in	6.1 mm			Polyamide (PA66) Nylon 6/6	UL94 V-2	Natural	Push In	0.062 in	1.57 mm	Half	3.18 mm	0.125 in	0.3 "	7.62 mm			6.1 mm	0.24 in	0.56 in	14.22 mm	0.187 in	4.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, U-Type Natural Push In 0.187" (4.75mm)
