SR3P-05

Active

IDEC Corporation

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

SR3P-05

Active

IDEC Corporation

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR3P-05	SR3P Series

Features	-	Finger-Safe (IP20) Terminals
For Use With/Related Products	RR Series	RR Series
Mounting Type	DIN Rail	DIN Rail
Number of Positions	11	11
Termination Style	Screw Terminal	Screw Terminal
Type	Socket	Socket

SR3P Series

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Part	For Use With/Related Products	Mounting Type	Features	Number of Positions	Type	Termination Style
IDEC Corporation SR3P-05C	RR Series	DIN Rail	Finger-Safe (IP20) Terminals	11	Socket	Screw Terminal
IDEC Corporation SR3P-06	RR Series	DIN Rail		11	Socket	Screw Terminal
IDEC Corporation SR3P-05	RR Series	DIN Rail		11	Socket	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.27
		10	$ 8.97
		10	$ 9.00
		25	$ 8.50
		30	$ 8.10
		50	$ 8.16
		100	$ 7.29
		100	$ 7.84
		250	$ 7.43
		500	$ 7.13
		1000	$ 6.84
Newark	Each	1	$ 11.00
		5	$ 10.72
		10	$ 10.45
		25	$ 9.91
		50	$ 9.36
		100	$ 8.81

Description

General part information

SR3P Series

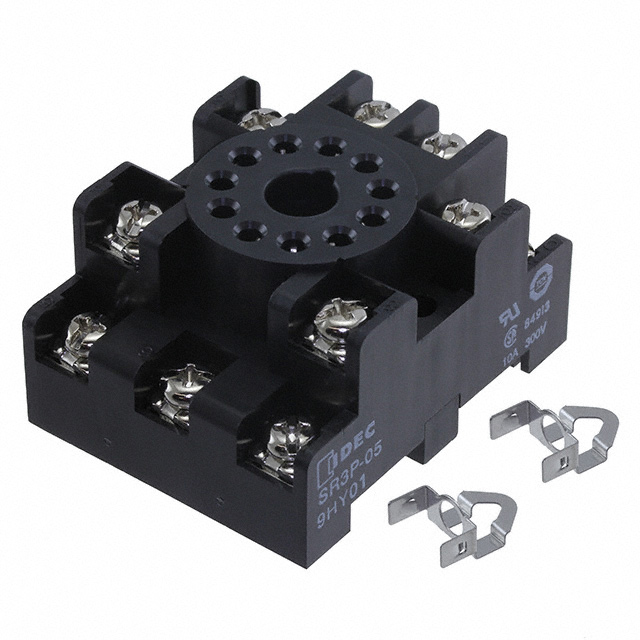

The SR3P-05 is a 11-pin Relay Socket with screw terminals. Suitable for use with RR3PA, RR2KP, GT3 (11-pin), RTE-P2 timer. This relay socket comes with SR3B-02F1 for RR3P, SR3P-06F3 for RR2KP hold-down spring and SFA-203 (timers) hold-down clip. This socket is ideal for snap-mount/surface mounting.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
