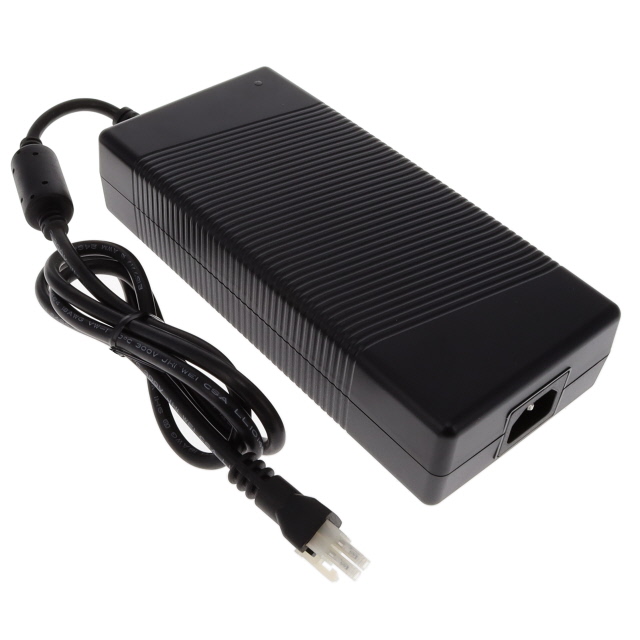

L6R250DM-480-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 48V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R250DM-480-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 48V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L6R250DM-480-C14	L6R250 Series

Applications	Medical	ITE (Commercial), Medical
Approval Agency	TUV, cULus, EN, FCC, CE	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m	1.5 - 47.2 in
Cord Length	59 in	59 in
Cord Length	-	1.2 m
Current - Output (Max) [Max]	5.21 A	5.2 - 20 A
Efficiency	Level VI	CoC Tier 2, Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14, IEC 320-C6
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Rectangular, 6 Position	Rectangular, 6 Position
Power (Watts)	250 W	240 - 250 W
Region Utilized	International	International
Size / Dimension [x]	204 mm	204 mm
Size / Dimension [x]	8.03 "	8.03 "
Size / Dimension [y]	94 mm	94 mm
Size / Dimension [y]	3.7 in	3.7 in
Size / Dimension [z]	1.71 in	1.71 in
Size / Dimension [z]	43.5 mm	43.5 - 43.6 mm
Standard Number	60601-1	62368-1, 60601-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	48 V	12 - 48 V
Weight	-	1 kg
Weight	-	2.3 lbs

L6R250 Series

AC/DC DESKTOP ADAPTER 12V 240W

Part	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Region Utilized	Form	Cord Length	Cord Length	Input Type	Efficiency	Operating Temperature [Max]	Input Connector	Voltage - Output	Output Connector	Power (Watts)	Standard Number	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Weight	Weight	Applications	Cord Length
Tri-Mag, LLC L6R250D-120	20 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	CE, cULus, EN, FCC, TUV	International	Desktop (Class I)	1.2 m	47.2 in	Cord	CoC Tier 2, Level VI	40 °C	IEC 320-C14	12 V	Rectangular, 6 Position	240 W	62368-1	150 mW	90 VAC	264 VAC	1 kg	2.3 lbs	ITE (Commercial)
Tri-Mag, LLC L6R250D-120-C6	20 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	CE, cULus, EN, FCC, TUV	International	Desktop (Class I)	1.2 m	47.2 in	Cord	CoC Tier 2, Level VI	40 °C	IEC 320-C6	12 V	Rectangular, 6 Position	240 W	62368-1	150 mW	90 VAC	264 VAC	1 kg	2.3 lbs	ITE (Commercial)
Tri-Mag, LLC L6R250DM-480-C14	5.21 A	94 mm	1.71 in	43.5 mm	3.7 in	8.03 "	204 mm	CE, cULus, EN, FCC, TUV	International	Desktop (Class I)		1.5 m	Cord	Level VI	40 °C	IEC 320-C14	48 V	Rectangular, 6 Position	250 W	60601-1	150 mW	90 VAC	264 VAC			Medical	59 in
Tri-Mag, LLC L6R250D-480-C6	5.2 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	CE, cULus, EN, FCC, TUV	International	Desktop (Class I)		1.5 m	Cord	CoC Tier 2, Level VI	40 °C	IEC 320-C6	48 V	Rectangular, 6 Position	250 W	62368-1	150 mW	90 VAC	264 VAC	1 kg	2.3 lbs	ITE (Commercial)	59 in
Tri-Mag, LLC L6R250D-190-C6	13.2 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	CE, cULus, EN, FCC, TUV	International	Desktop (Class I)		1.5 m	Cord	CoC Tier 2, Level VI	40 °C	IEC 320-C6	19 V	Rectangular, 6 Position	250 W	62368-1	150 mW	90 VAC	264 VAC	1 kg	2.3 lbs	ITE (Commercial)	59 in
Tri-Mag, LLC L6R250D-240-C6	10.42 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	CE, cULus, EN, FCC, TUV	International	Desktop (Class I)		1.5 m	Cord	CoC Tier 2, Level VI	40 °C	IEC 320-C6	24 V	Rectangular, 6 Position	250 W	62368-1	150 mW	90 VAC	264 VAC	1 kg	2.3 lbs	ITE (Commercial)	59 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 142.59

Description

General part information

L6R250 Series

48V 250 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
