6282-5PG-311

Active

Conxall/Switchcraft

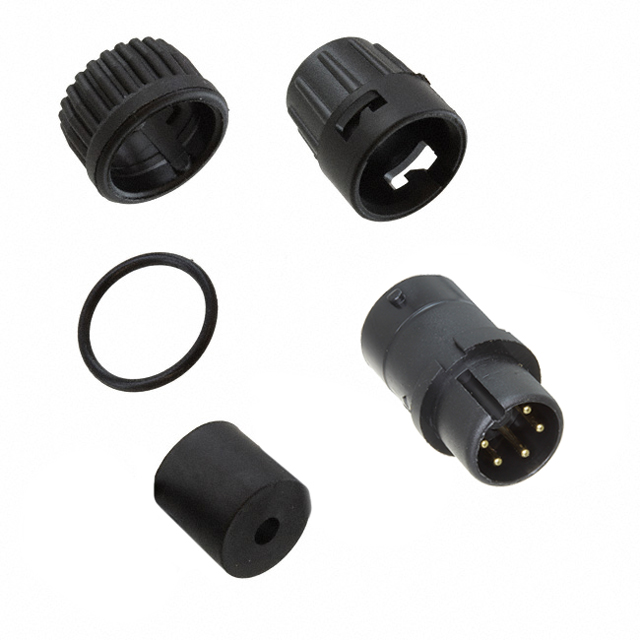

CONN PLUG MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 5P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6282-5PG-311	6282-5PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating	Current Rating (Amps)	Backshell Material, Plating	Applications	Shielding	Orientation	Fastening Type	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Features	Contact Material	Ingress Protection	Mounting Type	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6282-5PG-516	Gold	-40 °C	115 °C	Black	600 V	Varies by Wire Gauge	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Unshielded	Keyed	Bayonet Lock	Male Pins, Plug	0.16 in	0.18 in	4.06 mm	4.57 mm	Backshell	Brass	Weathertight	Free Hanging (In-Line)	Plastic
Conxall/Switchcraft 6282-5PG-513	Gold	-40 °C	115 °C	Black	600 V	Varies by Wire Gauge	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Unshielded	Keyed	Bayonet Lock	Male Pins, Plug					Backshell	Brass	Weathertight	Free Hanging (In-Line)	Plastic	0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6282-5PG-311	Gold	-40 °C	115 °C	Black	600 V	Varies by Wire Gauge	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Unshielded	Keyed	Bayonet Lock	Male Pins, Plug					Backshell	Brass	Weathertight	Free Hanging (In-Line)	Plastic			2.29 mm	0.09 in, 0.14 in	3.56 mm
