5305FE 0081000

Active

Belden Inc.

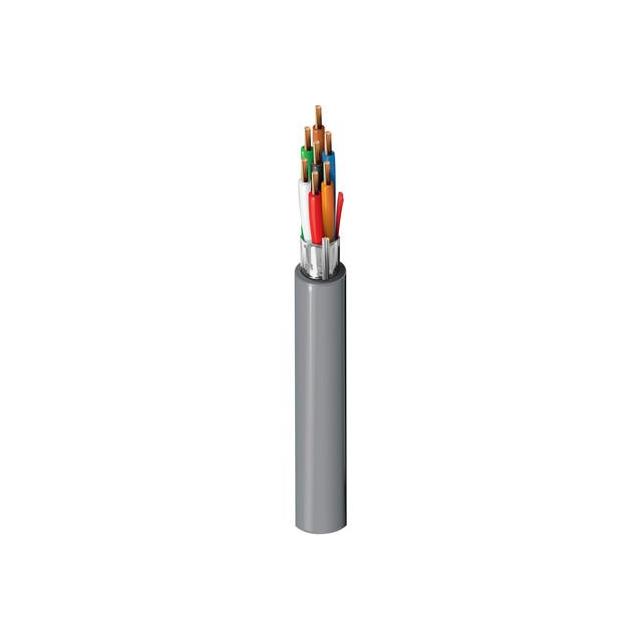

CABLE 7CON 18AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7CON 18AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5305FE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.74 mm
Jacket (Insulation) Diameter [diameter]	0.226 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Material	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Usage	Features	Shield Coverage	Ratings	Wire Gauge	Voltage	Jacket Color	Shield Type	Cable Type
Belden Inc. 5305FE 0081000	Copper Bare	1000 ft	304.8 m	5.74 mm	0.226 in	26 AWG	7	7	Aluminum	0.457 mm	0.018 in	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	Security Sound	Drain Wire Rip Cord	100 %	UL Style CMR	18 AWG	300 V	Gray	Foil	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.67

General part information

7 Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
