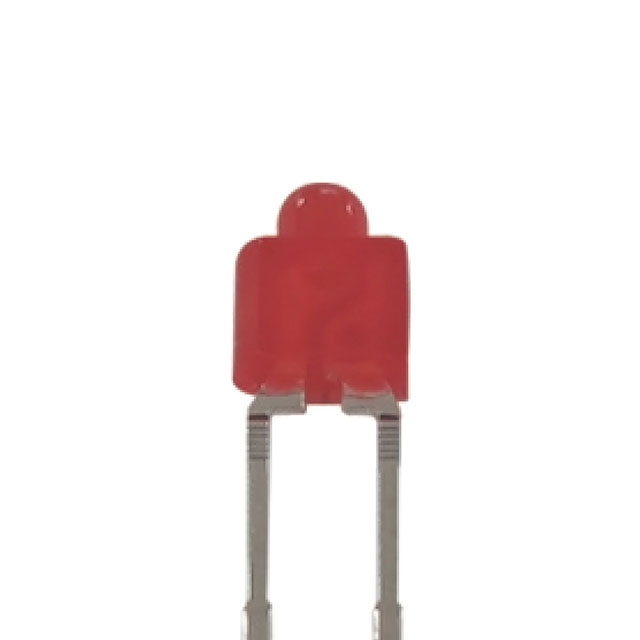

XLUR61D-A
ActiveSunLED
LED RED DIFFUSED T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLUR61D-A
ActiveSunLED
LED RED DIFFUSED T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLUR61D-A |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 5.35 mm |
| Lens Color | Red |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 7 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 617 nm |
| Wavelength - Peak | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.10 | |
Description
General part information
XLUR61 Series
Red 617nm LED Indication - Discrete 1.9V Radial
Documents
Technical documentation and resources
