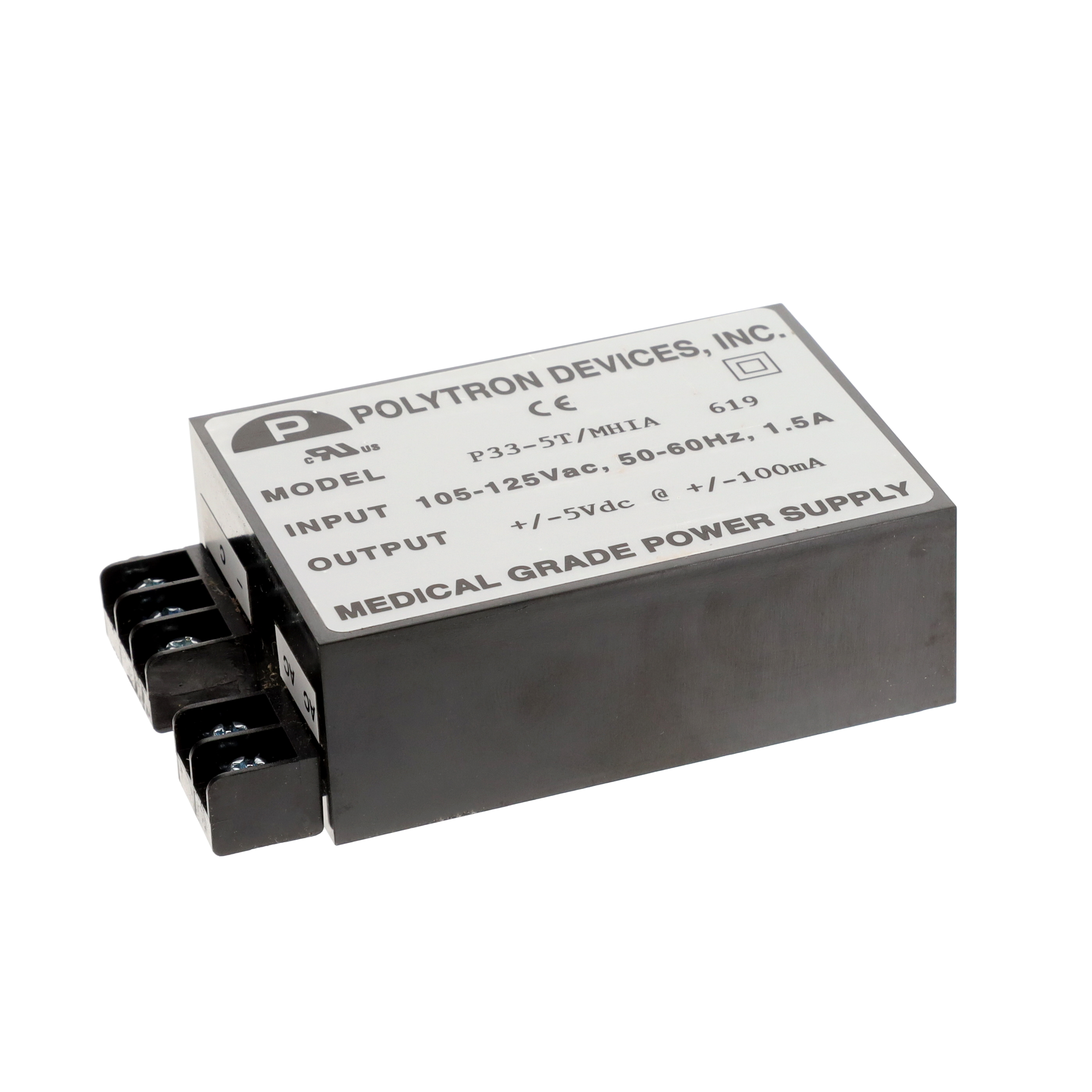

P33-5T/MHIA

Active

Polytron

AC/DC CONVERTER +/-5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P33-5T/MHIA

Active

Polytron

AC/DC CONVERTER +/-5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P33-5T/MHIA

Applications	Medical
Approval Agency	CE, cURus
Current - Output 1	100 mA
Current - Output 2	100 mA
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	104.1 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	63.5 mm
Size / Dimension [y]	2.5 in
Size / Dimension [z]	22.2 mm
Size / Dimension [z]	0.88 in
Type	Enclosed
Voltage - Input [Max]	125 VAC
Voltage - Input [Min]	105 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

P33-5 Series

Part	Number of Outputs	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Load Regulation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Type	Mounting Type	Package / Case	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Line Regulation	Voltage - Output 1	Features	Voltage - Output 2	Voltage - Isolation	Current - Output 2	Current - Output 1
Polytron P33-5X/MHIA	2	CE cURus	105 VAC	220 VAC	0.1 %	63.5 mm	0.87 in	3.5 in	88.9 mm	22.2 mm	2.5 in	Medical	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V
Polytron P33-5/MHIA	2	CE cURus	105 VAC	125 VAC	0.1 %	63.5 mm	0.87 in	3.5 in	88.9 mm	22.2 mm	2.5 in	Medical	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V
Polytron P33-5/22	2	CE cURus UL	105 VAC	125 VAC	0.1 %	63.5 mm	0.88 in	3.5 in	88.9 mm	22.4 mm	2.5 in	ITE (Commercial)	Enclosed	Through Hole	5-DIP Module	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V	SCP
Polytron P33-5XA/MHIA	2	CE cURus	105 VAC	230 VAC/DC	0.1 %	63.5 mm	0.87 in	3.5 in	88.9 mm	22.2 mm	2.5 in	Medical	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V
Polytron P33-5T/MHIA	2	CE cURus	105 VAC	125 VAC		63.5 mm	0.88 in	4.1 "	104.1 mm	22.2 mm	2.5 in	Medical	Enclosed	Chassis Mount				-25 °C	71 °C		5 V		-5 V	4000 V	100 mA	100 mA
Polytron P33-5/22/MHIA	2	CE cURus	105 VAC	125 VAC	0.1 %	63.5 mm	0.88 in	3.5 in	88.9 mm	22.4 mm	2.5 in	Medical	Enclosed	Through Hole	5-DIP Module	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V
Polytron P33-5W	2	CE cURus UL	105 VAC	125 VAC	0.1 %	63.5 mm	0.88 in	3.5 in	88.9 mm	22.4 mm	2.5 in	ITE (Commercial)	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-40 °C	85 °C	0.1 %	5 V	SCP
Polytron P33-5X	2	CE cURus UL	105 VAC	125 VAC	0.1 %	63.5 mm	0.88 in	3.5 in	88.9 mm	22.4 mm	2.5 in	ITE (Commercial)	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V	SCP
Polytron P33-5XA	2	CE cURus UL	105 VAC	230 VAC/DC	0.1 %	63.5 mm	0.88 in	3.5 in	88.9 mm	22.4 mm	2.5 in	ITE (Commercial)	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-25 °C	71 °C	0.1 %	5 V	SCP
Polytron P33-5W/MHIA	2	CE cURus	105 VAC	125 VAC	0.1 %	63.5 mm	0.87 in	3.5 in	88.9 mm	22.2 mm	2.5 in	Medical	Enclosed	Through Hole	7-DIP Module 5 Leads	100 mA	100 mA	-40 °C	85 °C	0.1 %	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 219.41
		5	$ 211.57
		10	$ 208.44

Description

General part information

P33-5 Series

Enclosed AC DC Converters 2 Output 5V -5V 105 ~ 125 VAC Input
