RT-770-3/8-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

RT-770-3/8-0-SP 1=100FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RT-770-3/8-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

RT-770-3/8-0-SP 1=100FT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 148.30
		1	$ 531.66

Description

General part information

RT-770 Series

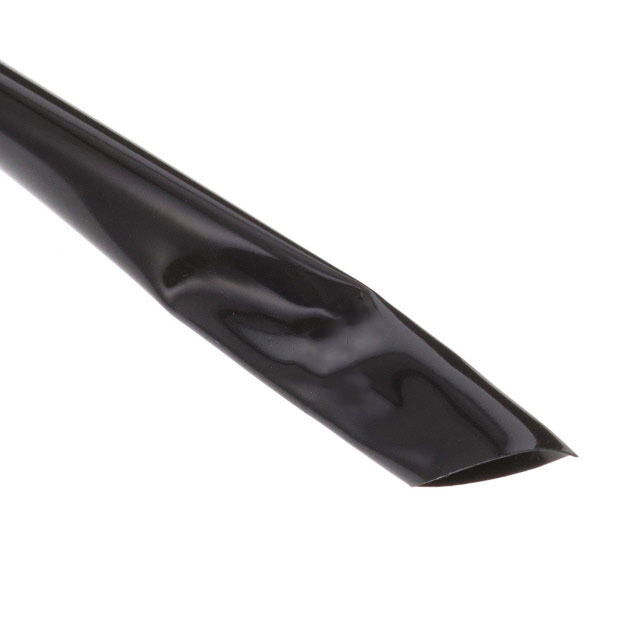

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RT-770-3/8-0-SP	RT-770 Series

Color	Black	Black
Features	Chemical Resistant	Chemical Resistant, Flame Resistant, Fluid Resistant
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	4.75 mm	1.57 - 19.05 mm
Inner Diameter - Recovered [diameter]	0.187 in	0.062 - 0.75 in
Inner Diameter - Supplied [diameter]	0.375 in	0.125 - 1.5 in
Inner Diameter - Supplied [diameter]	9.53 mm	3.18 - 38.1 mm
Length	7.6 m	1.52 - 457.2 m
Length	25 ft	5 - 1500 ft
Length	-	Enter Number of Feet in Order Quantity
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Material	Fluoropolymer	Fluoropolymer
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Recovered Wall Thickness	0.02 in	0.014 - 0.045 "
Recovered Wall Thickness	0.51 mm	0.36 - 1.14 mm
Shrink Temperature	150 °C	150 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	-	76.2 - 91.4 m
Spool Size	-	250 - 300 ft
Type	Tubing, Flexible	Tubing, Flexible

RT-770 Series

HEATSHRINK 3/4" BLACK FEET

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shrinkage Ratio	Length [x]	Length [x]	Material	Type	Length	Shrink Temperature	Spool Size	Spool Size	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Aerospace, Defense and Marine RT-770-3/4-0-SP	-55 °C	125 °C	Black	2 to 1	30.5 m	100 ft	Fluoropolymer	Tubing, Flexible	Enter Number of Feet in Order Quantity	150 °C	76.2 m	250 ft	0.81 mm	0.032 "	0.375 in	9.53 mm	Chemical Resistant	15.2 m	50 ft
TE Connectivity Aerospace, Defense and Marine RT-770-1-1/2-0-SP	-55 °C	125 °C	Black	2 to 1									1.14 mm	0.045 in	0.75 "	19.05 mm	Chemical Resistant, Flame Resistant, Fluid Resistant			38.1 mm	1.5 in
TE Connectivity Aerospace, Defense and Marine RT-770-1/2-0-SP	-55 °C	125 °C	Black	2 to 1			Fluoropolymer	Tubing, Flexible	Enter Number of Feet in Order Quantity	150 °C	91.4 m	300 ft	0.56 mm	0.022 "	0.25 in	6.35 mm	Chemical Resistant	1.52 m	5 '	12.7 mm	0.5 in
TE Connectivity Aerospace, Defense and Marine RT-770-1-0-SP	-55 °C	125 °C	Black	2 to 1									0.94 mm	0.037 in	0.5 in	12.7 mm	Chemical Resistant, Flame Resistant, Fluid Resistant			25.4 mm	1 in
TE Connectivity Aerospace, Defense and Marine RT-770-3/8-0-SP			Black	2 to 1	30.5 m	100 ft	Fluoropolymer	Tubing, Flexible		150 °C			0.51 mm	0.02 in	0.187 in	4.75 mm	Chemical Resistant	7.6 m	25 ft	9.53 mm	0.375 in
TE Connectivity Aerospace, Defense and Marine RT-770-1/4-0-SP	-55 °C	125 °C	Black	2 to 1									0.46 mm	0.018 in	0.125 in		Chemical Resistant, Flame Resistant, Fluid Resistant			6.35 mm	0.25 in	3.18 mm
TE Connectivity Aerospace, Defense and Marine RT-770-5/8-0-SP	-55 °C	125 °C	Black	2 to 1			Fluoropolymer	Tubing, Flexible	Enter Number of Feet in Order Quantity	150 °C	76.2 m	250 ft	0.66 mm	0.026 "	0.312 in	7.92 mm	Chemical Resistant			15.88 mm	0.625 in
TE Connectivity Aerospace, Defense and Marine RT-770-3/16-0-SP			Black	2 to 1	152.4 m	500 '	Fluoropolymer	Tubing, Flexible		150 °C			0.41 mm	0.016 "			Chemical Resistant			4.75 mm	0.187 in	2.36 mm	0.093 in
TE Connectivity Aerospace, Defense and Marine RT-770-1/8-0-SP			Black	2 to 1			Fluoropolymer	Tubing, Flexible		150 °C			0.36 mm	0.014 "	0.062 in	1.57 mm	Chemical Resistant	457.2 m	1500 '	3.18 mm	0.125 "
