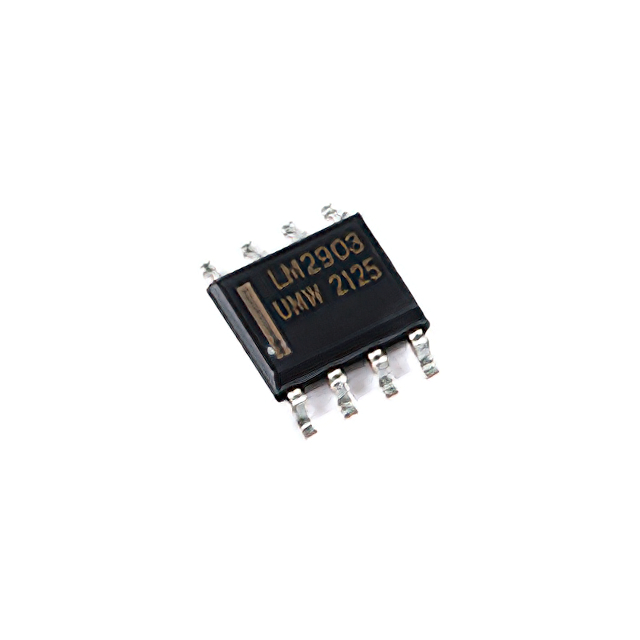

LM2903DR

Active

UMW

IC COMPARATOR 2 GEN PUR 8SOP

Search across all available documentation for this part.

Active

UMW

IC COMPARATOR 2 GEN PUR 8SOP

Technical Specifications

Parameters and characteristics for this part

Specification	LM2903DR

Current - Input Bias (Max) [Max]	0.25 µA
Current - Output (Typ)	16 mA
Current - Quiescent (Max) [Max]	2.5 mA
Mounting Type	Surface Mount
Number of Elements	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	Open-Collector, Rail-to-Rail
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Propagation Delay (Max) [Max]	300 ns
Supplier Device Package	8-SOP
Type	General Purpose
Voltage - Input Offset (Max)	5 mV
Voltage - Supply, Single/Dual (±) [Max]	15 V, 30 V
Voltage - Supply, Single/Dual (±) [Min]	1 V, 2 V

IC COMPARATOR 2 GEN PUR 8SOP

Part	Output Type	Current - Output (Typ)	Voltage - Input Offset (Max)	Type	Number of Elements	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplier Device Package	Propagation Delay (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Max) [Max]	Mounting Type	Current - Input Bias (Max) [Max]
UMW LM2903DR	Open-Collector, Rail-to-Rail	16 mA	5 mV	General Purpose	2	8-SOIC	3.9 mm	0.154 in	1 V, 2 V	15 V, 30 V	8-SOP	300 ns	70 °C	0 °C	2.5 mA	Surface Mount	0.25 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Comparator General Purpose Open-Collector, Rail-to-Rail 8-SOP
