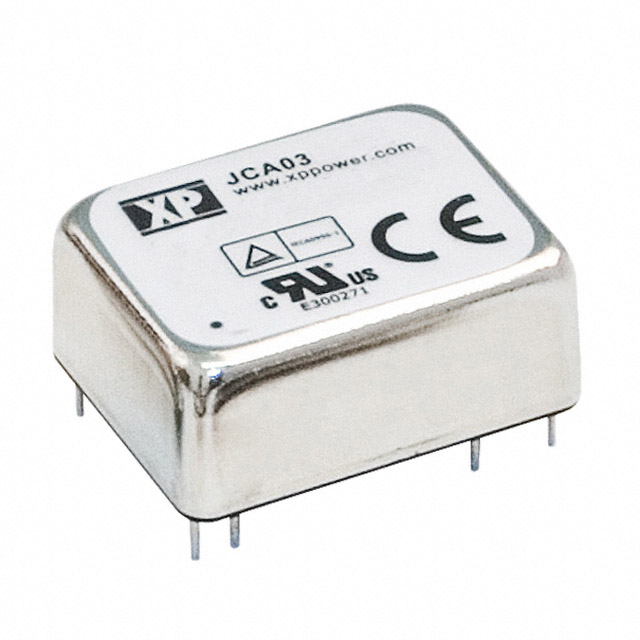

JCA0324D01

Active

XP POWER

DC DC CONVERTER +/-5V 3W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-5V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Applications	Number of Outputs	Standard Number	Power (Watts)	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Efficiency	Voltage - Output 1	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
XP POWER JCA0324S03	Isolated Module	ITE (Commercial)	1	62368-1	3 W	24-DIP Module 7 Leads	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	Through Hole	74 %	3.3 V	OCP OVP SCP UVLO	100 °C	-40 °C	36 V	18 V	910 mA	1.5 kV
XP POWER JCA0324D01	Isolated Module	ITE (Commercial)	2	62368-1	3 W	24-DIP Module 8 Leads	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	Through Hole	77 %	5 V	OCP OVP SCP UVLO	100 °C	-40 °C	36 V	18 V		1.5 kV	300 mA	-5 V
XP POWER JCA0324D02	Isolated Module	ITE (Commercial)	2	62368-1	3 W	24-DIP Module 8 Leads	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	Through Hole	77 %	12 V	OCP OVP SCP UVLO	100 °C	-40 °C	36 V	18 V		1.5 kV	130 mA	-12 V	130 mA
XP POWER JCA0324D03	Isolated Module	ITE (Commercial)	2	62368-1	3 W	24-DIP Module 8 Leads	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	Through Hole	75 %	15 V	OCP OVP SCP UVLO	100 °C	-40 °C	36 V	18 V		1.5 kV	100 mA	-15 V	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	16	$ 23.59
