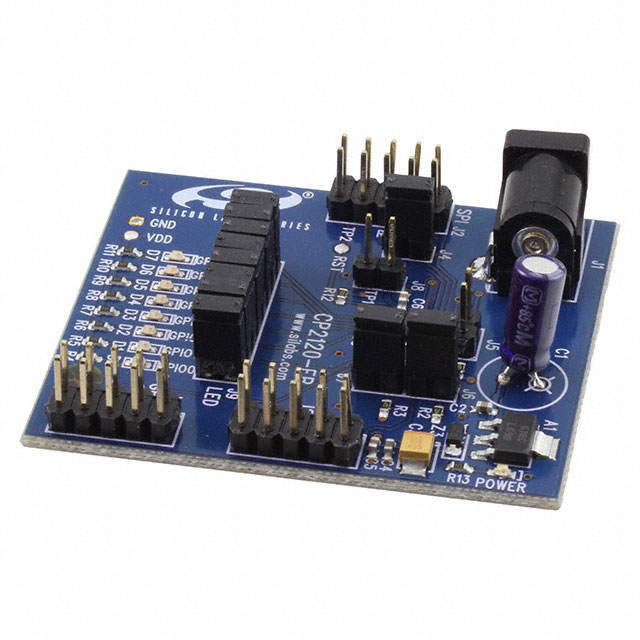

CP2120EK

Obsolete

Silicon Labs

EVAL BOARD FOR CP2120

Search across all available documentation for this part.

Obsolete

Silicon Labs

EVAL BOARD FOR CP2120

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Embedded	Function	Contents	Secondary Attributes	Type	Clock Frequency	Number of I/O	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Interrupt Output	Supplier Device Package	Package / Case	Current - Output Source/Sink [custom]	Current - Output Source/Sink [custom]
Silicon Labs CP2120EK	CP2120		SPI to I2C	Board(s) Power Supply	On-Board LEDs	Interface
Silicon Labs CP2120-GM							400 kHz	8	Open Drain Push-Pull	Surface Mount	85 °C	-40 °C	I2C SPI	3.6 V	3 V		20-QFN (4x4)	20-VFQFN Exposed Pad	10 mA	25 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CP2120 - SPI to I2C Interface Evaluation Board
