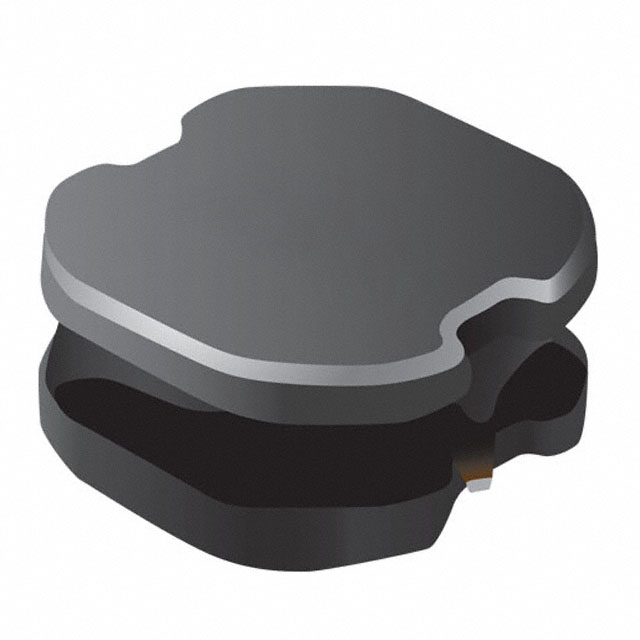

SRN8040-101M - SRN8040

SRN8040-101M

Active
Bourns Inc.

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 100UH 20% 100KHZ 10Q-FACTOR FERRITE 1A 0.4OHM DCR T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
SRN8040-101M - SRN8040

SRN8040-101M

Active
Bourns Inc.

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 100UH 20% 100KHZ 10Q-FACTOR FERRITE 1A 0.4OHM DCR T/R

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSRN8040-101M
Current - Saturation (Isat)1 A
Current Rating (Amps)1 A
DC Resistance (DCR) [Max]400 mOhm
Frequency - Self Resonant6 MHz
Height - Seated (Max) [Max]0.157 in
Height - Seated (Max) [Max]4 mm
Inductance100 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
Q @ Freq10, 796 kHz
ShieldingShielded
Size / Dimension [x]0.315 "
Size / Dimension [x]8 mm
Size / Dimension [y]0.315 in
Size / Dimension [y]8 mm
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1000$ 0.27
2000$ 0.25
3000$ 0.25
DigikeyCut Tape (CT) 1$ 0.46
10$ 0.39
25$ 0.36
50$ 0.33
100$ 0.29
250$ 0.28
500$ 0.24
Digi-Reel® 1$ 0.46
10$ 0.39
25$ 0.36
50$ 0.33
100$ 0.29
250$ 0.28
500$ 0.24
Tape & Reel (TR) 1000$ 0.23
NewarkEach (Supplied on Full Reel) 1000$ 0.31
2000$ 0.31
4000$ 0.31
6000$ 0.30
10000$ 0.30

Description

General part information

SRN8040 Series

100 µH Shielded Drum Core, Wirewound Inductor 1 A 400mOhm Max Nonstandard
