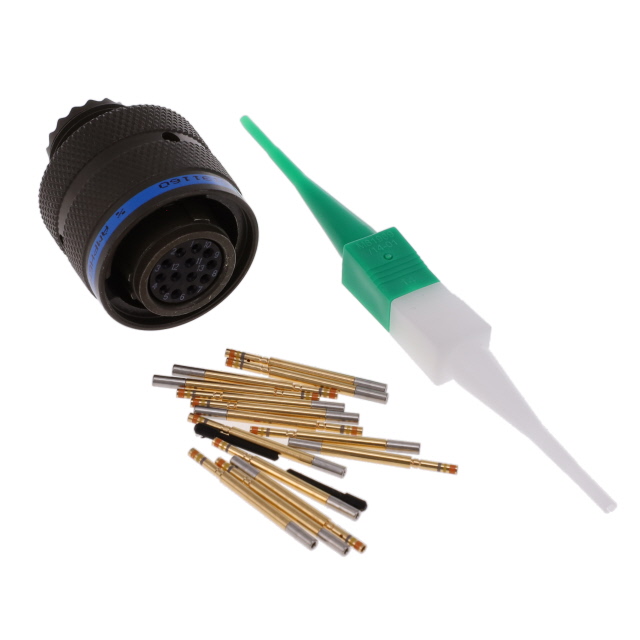

MS27467T11B35S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T11B35S

Applications	Military, Aviation
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	11
Shielding	Shielded
Termination	Crimp

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Termination	Ingress Protection	Features	Number of Positions	Grade	Orientation	Shell Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Connector Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Qualification	Color	Shielding	Fastening Type	Contact Finish - Mating	Type	Contact Shape	Shell Finish	Housing Color	Contact Size	Note	Contact Type
Amphenol Aerospace Operations MS27467T11B35S	11	35	Crimp	Environment Resistant	Coupling Nut	13	Military	N	Aluminum	Metal	-65 ░C	347 °F	Aviation Military	Free Hanging (In-Line)	Female Sockets Plug	Copper Alloy	1.27 µm	50 µin	MIL-DTL-38999 Series I	Olive Drab	Shielded	Bayonet Lock	Gold
Amphenol Aerospace Operations MS27467T11B35S-CAE	11	35		Environment Resistant	Coupling Nut Ground	13	Military	N	Aluminum Alloy		-65 ░C	347 °F		Free Hanging (In-Line)	Plug Housing				MIL-DTL-38999 Series I		Shielded	Bayonet Lock		For Female Sockets	Circular	Cadmium over Nickel	Olive Drab	22D	Contacts Not Included	Crimp
Amphenol Aerospace Operations MS27467T11B35P	11	35	Crimp	Environment Resistant	Coupling Nut	13	Military	N	Aluminum	Metal	-65 ░C	347 °F	Aviation Military	Free Hanging (In-Line)	Male Pins Plug	Copper Alloy	1.27 µm	50 µin	MIL-DTL-38999 Series I	Olive Drab	Shielded	Bayonet Lock	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Circular Connector Plug, Female Sockets Crimp
