Technical Specifications
Parameters and characteristics for this part
| Specification | 5120FL 0021000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.209 in |
| Jacket (Insulation) Diameter [diameter] | 5.31 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.432 mm |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Red |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | UL Style FPLR |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Alarm, Safety |
| Voltage | 300 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.51 | |
| 2000 | $ 0.48 | |||
| 3000 | $ 0.47 | |||
| 5000 | $ 0.45 | |||
| 7000 | $ 0.44 | |||
| 10000 | $ 0.43 | |||
Description
General part information
5120FL Series

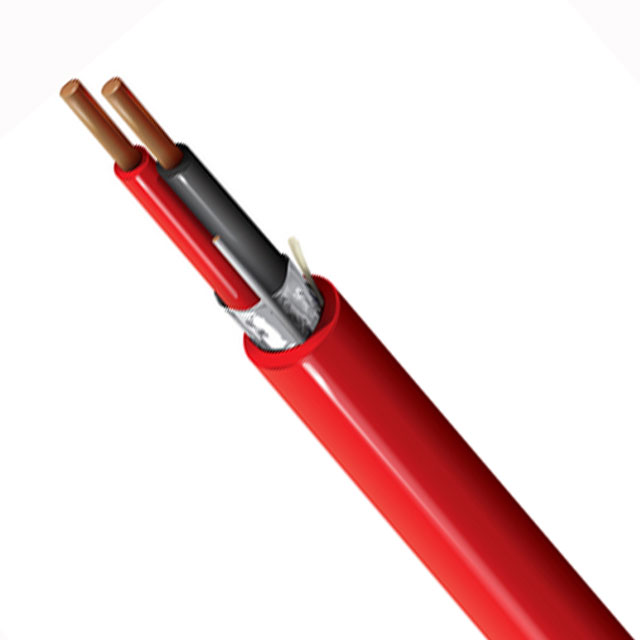

2 Conductor Multi-Conductor Cable Red 14 AWG Foil 1000.0' (304.8m)
