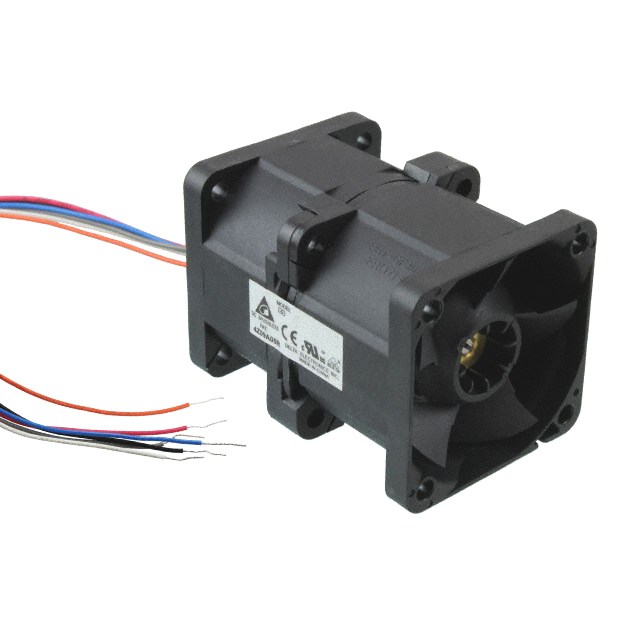

GFB0412SHS-DF00

Obsolete

Delta Electronics

FAN AXIAL DUAL 40X56MM 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

GFB0412SHS-DF00

Obsolete

Delta Electronics

FAN AXIAL DUAL 40X56MM 12VDC

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GFB0412SHS-DF00

Air Flow	30.2 CFM
Air Flow	0.846 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.1 A
Fan Type	Tubeaxial (Dual)
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	63 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	13.2 W
RPM [custom]	15000 RPM
RPM [custom]	14300 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	2.344 in H2O
Static Pressure	583.9 Pa
Termination	3 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	83.01 g
Weight	0.183 lb
Width [x]	56 mm

GFB0412 Series

Part	Fan Type	Features	Termination	Voltage - Rated	Current Rating (Amps)	Weight	Weight	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Material - Blade	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	RPM [custom]	RPM [custom]	Approval Agency	Lifetime @ Temp.	Bearing Type	Noise	Width [x]	Power (Watts)	Width [y]	Size / Dimension [y]
Delta Electronics GFB0412SHS-DF00	Tubeaxial (Dual)	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads per Fan	12 VDC	1.1 A	83.01 g	0.183 lb	40 mm	Square	40 mm	10.8 VDC	12.6 VDC	30.2 CFM	0.846 m³/min	Plastic	Plastic	-10 °C	-10 °C	60 °C	60 °C	2.344 in H2O	583.9 Pa	15000 RPM	14300 RPM	CE CSA UL VDE	70000 Hrs	Ball	63 dB	56 mm	13.2 W
Delta Electronics GFB0412EHS-DF00	Tubeaxial (Dual)	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads per Fan	12 VDC	1.3 A	83.01 g	0.183 lb	40 mm	Square	40 mm	10.8 VDC	12.6 VDC			Plastic	Plastic	-10 °C	-10 °C	60 °C	60 °C	2.631 in H2O	655.4 Pa	16000 RPM	15400 RPM	CE CSA UL VDE	50000 Hrs	Ball	64.5 dB(A)	56 mm	15.6 W
Delta Electronics GFB0412GHS-CF00	Tubeaxial (Dual)	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads per Fan	12 VDC	1.78 A	84.82 g	0.187 lb	40 mm	Square	40 mm	10.8 VDC	12.6 VDC	34.9 CFM	0.977 m³/min	Plastic	Plastic	-10 °C	-10 °C	60 °C	60 °C	2.397 in H2O	597.1 Pa	16100 RPM	17100 RPM	CE CSA UL VDE	50000 Hrs	Ball	66.5 dB(A)	56 mm	21.36 W
Delta Electronics GFB0412SHE-F00	Tubeaxial (Dual)	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads per Fan	12 VDC	0.56 A	50.35 g	0.111 lb			40 mm	7 V	13.2 VDC	22.2 CFM	0.622 m³/min	Plastic	Plastic	-10 °C	-10 °C	60 °C	60 °C	0.594 in H2O	148 Pa	10000 RPM	9600 RPM	CE CSA UL VDE	50000 Hrs	Ball	57.5 dB		6.72 W	38 mm	50 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GFB0412 Series

Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 30.2 CFM (0.846m³/min) 3 Wire Leads per Fan
