MS3122E24-61P

Active

ITT Cannon, LLC

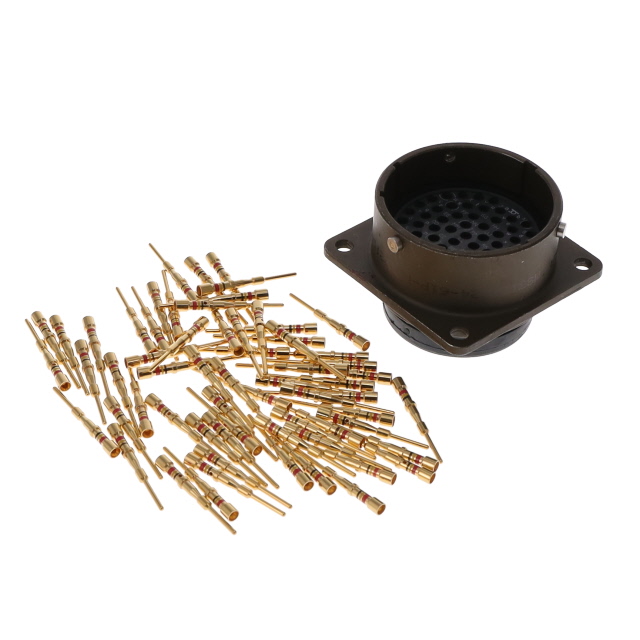

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3122 SERIES, BOX MOUNT RECEPTACLE, 61 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3122E24-61P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3122 SERIES, BOX MOUNT RECEPTACLE, 61 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E24-61P

Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	61
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	61
Shell Size - Insert [Min]	24
Termination	Crimp
Voltage Rating	600 VAC, 850 V

MS3122E24 Series

Part	Fastening Type	Ingress Protection	Shell Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Feature	Current Rating (Amps)	Orientation	Termination	Color	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Primary Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating
ITT Cannon, LLC MS3122E24-61P	Bayonet Lock	Environment Resistant	Olive Drab Cadmium	Male Pins Receptacle	-55 °C	125 °C	61	Flange	7.5 A	N	Crimp	Olive Drab	Aluminum Alloy	1.27 µm	50 µin	Gold	Metal	61	24	600 VAC 850 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.64

Description

General part information

MS3122E24 Series
