H8MMH-1618M

Active

Assmann WSW Components

DIP CABLE - HDM16H/AE16M/HDM16H

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDM16H/AE16M/HDM16H

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - HDM16H/AE16G/HDM16H

Part	Contact Finish	Length [x]	Length [x]	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Shielding	Usage	Number of Positions	Number of Rows	Color	Length	Length	Length
Assmann WSW Components H8MMH-1618G	Gold	457.2 mm	1.5 ft	IDC	DIP to DIP, Reversed	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	Board In, Socket (0.1")	16	2
Assmann WSW Components H8MMH-1636G	Gold	914.4 mm	3 ft	IDC	DIP to DIP, Reversed	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	Board In, Socket (0.1")	16	2
Assmann WSW Components H8MMH-1618M	Gold	457.2 mm	1.5 ft	IDC	DIP to DIP, Reversed	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	Board In, Socket (0.1")	16	2	Multiple, Ribbon
Assmann WSW Components H8MMH-1606G	Gold			IDC	DIP to DIP, Reversed	0.05 "	1.27 mm	0.1 in	2.54 mm	Unshielded	Board In, Socket (0.1")	16	2		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

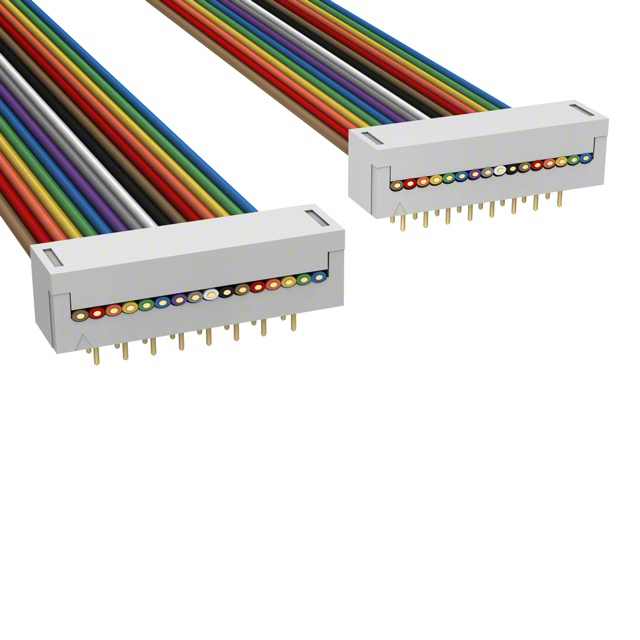

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
