45K101-102L5

Active

Rosenberger

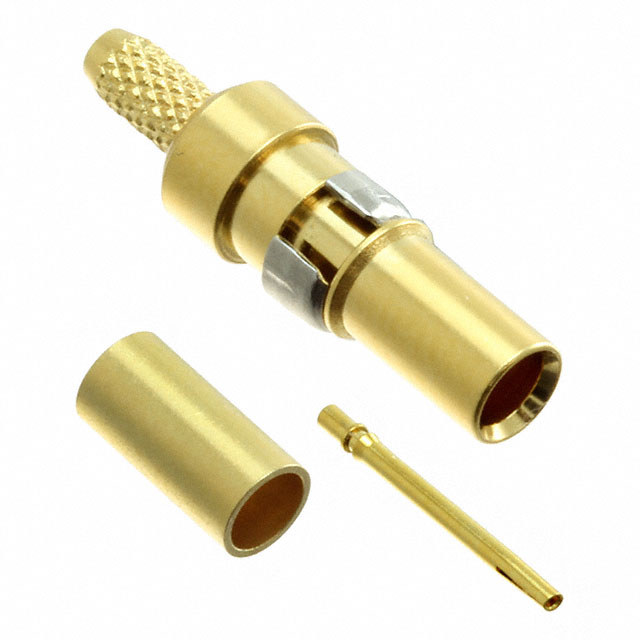

CONN 1.0/2.3 JCK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN 1.0/2.3 JCK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	45K101-102L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	2 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Cable Group	Frequency - Max [Max]	Contact Termination	Connector Style	Center Contact Plating	Shield Termination	Connector Type	Impedance	Fastening Type	Number of Ports	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Housing Color	Dielectric Material	Body Material	Includes	Mating Cycles	Mounting Type
Rosenberger 45K101-102L5	188A 316 RG-174A	2 GHz	Crimp	1.0/2.3	Gold	Crimp	Female Socket Jack	50 Ohms	Push-Pull	1	250 VDC	Gold	-55 °C	125 °C	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Brass	1 Connector 1 Contact 1 Ferrule	500	Free Hanging (In-Line)
Rosenberger 45K101-103L5	RG-316	2 GHz	Crimp	1.0/2.3	Gold	Crimp	Female Socket Jack	50 Ohms	Push-Pull	1	250 VDC	Gold	-55 °C	125 °C	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Brass		500	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
