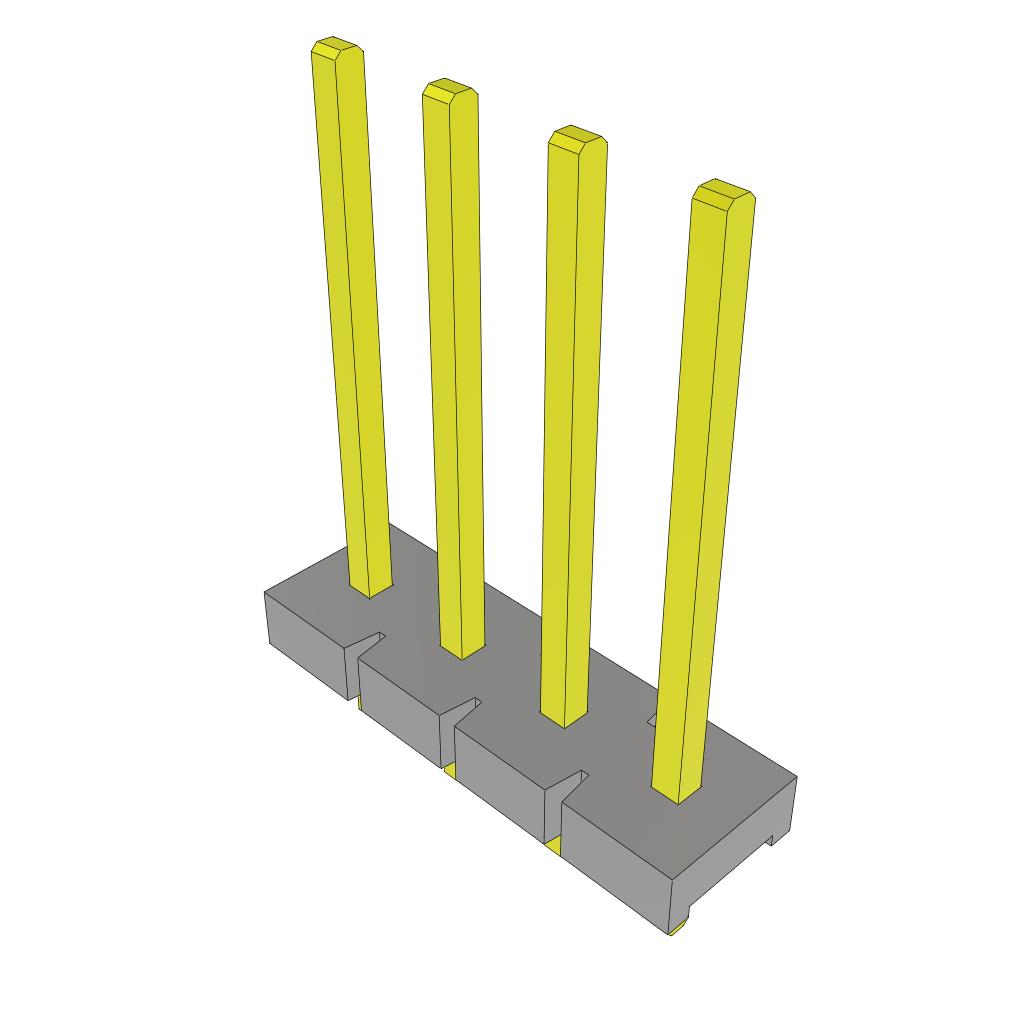

HPM-04-04-T-S

Active

Samtec Inc.

.200" POWER TERMINAL STRIP

Search across all available documentation for this part.

Active

Samtec Inc.

.200" POWER TERMINAL STRIP

Technical Specifications

Parameters and characteristics for this part

Specification	HPM-04-04-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.83 in
Contact Length - Mating	21.08 mm
Contact Length - Post	0.161 in
Contact Length - Post	4.09 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	27.71 mm
Overall Contact Length	1.091 "
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	1200 VDC, 850 VAC

Part	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Mounting Type	Shrouding	Insulation Material	Insulation Height	Insulation Height	Fastening Type	Contact Material	Number of Positions	Contact Shape	Material Flammability Rating	Insulation Color	Number of Rows	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Voltage Rating	Termination	Features
Samtec Inc. HPM-04-04-T-S	0.161 in	4.09 mm	5.08 mm	0.2 in	Tin	Header	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Push-Pull	Copper Alloy	4	Square	UL94 V-0	Black	1	27.71 mm	1.091 "	105 ░C	-55 °C	Male Pin	0.83 in	21.08 mm	All	850 VAC 1200 VDC	Solder
Samtec Inc. HPM-04-01-TM-S-VS-P			5.08 mm	0.2 in	Tin	Header	Surface Mount	Unshrouded	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Push-Pull	Copper Alloy	4	Square	UL94 V-0	Natural	1			105 ░C	-55 °C	Male Pin			All	850 VAC 1200 VDC	Solder	Pick and Place
Samtec Inc. HPM-04-02-T-S-VS-P			5.08 mm	0.2 in	Tin	Header	Surface Mount	Unshrouded	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Push-Pull	Copper Alloy	4	Square	UL94 V-0	Natural	1			105 ░C	-55 °C	Male Pin			All	850 VAC 1200 VDC	Solder	Pick and Place
Samtec Inc. HPM-04-01-T-S-VS-P			5.08 mm	0.2 in	Tin	Header	Surface Mount	Unshrouded	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Push-Pull	Copper Alloy	4	Square	UL94 V-0	Natural	1			105 ░C	-55 °C	Male Pin			All	850 VAC 1200 VDC	Solder	Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.200" (5.08mm)
