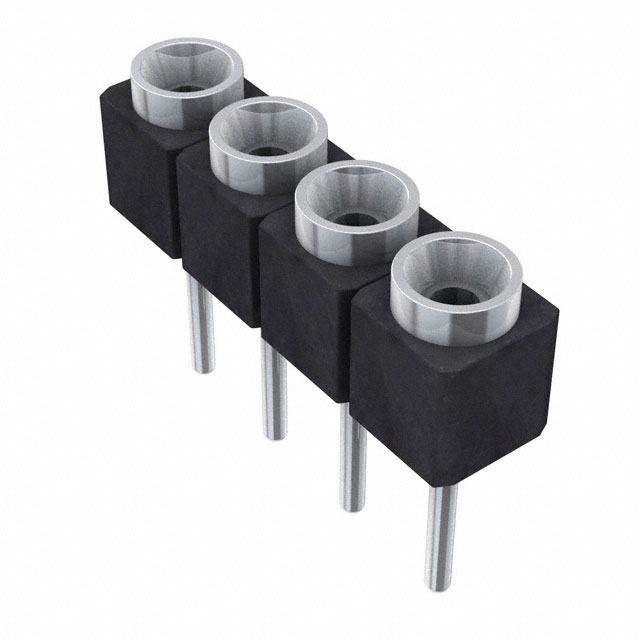

SS-104-TT-2-N

Unknown

Samtec Inc.

CONN RCPT 4POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SS-104-TT-2-N

Unknown

Samtec Inc.

CONN RCPT 4POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-104-TT-2-N

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SS-104 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Fastening Type	Contact Type	Number of Positions Loaded	Contact Finish - Mating	Termination	Insulation Color	Mounting Type	Connector Type	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Material	Contact Length - Post	Contact Length - Post
Samtec Inc. SS-104-G-22-N	10 çin	0.25 çm	0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Gold	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper	3.18 mm	0.125 in	Circular	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. SS-104-T-38			0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Tin	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper			Circular	Polybutylene Terephthalate (PBT) Glass Filled	0.18 in	4.57 mm
Samtec Inc. SS-104-G-1A-N	10 çin	0.25 çm	0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Gold	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper			Circular	Polybutylene Terephthalate (PBT) Glass Filled	0.36 in	9.14 mm
Samtec Inc. SS-104-T-1B			0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Tin	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper			Circular	Polybutylene Terephthalate (PBT) Glass Filled	0.51 in	12.95 mm
Samtec Inc. SS-104-G-21A	10 çin	0.25 çm	0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Gold	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper			Circular	Polybutylene Terephthalate (PBT) Glass Filled	0.36 in	9.14 mm
Samtec Inc. SS-104-G-22	10 çin	0.25 çm	0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Gold	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper	3.18 mm	0.125 in	Circular	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. SS-104-TT-1C-N			0.1 in	2.54 mm	Push-Pull	Female Socket	All		Solder	Black	Through Hole	Receptacle	Tin	4			0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper	6.6 mm	0.26 in	Circular	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. SS-104-T-5			0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Tin	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper			Circular	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm
Samtec Inc. SS-104-T-22			0.1 in	2.54 mm	Push-Pull	Female Socket	All	Gold	Solder	Black	Through Hole	Receptacle	Tin	4	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper	3.18 mm	0.125 in	Circular	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. SS-104-TT-2-N			0.1 in	2.54 mm	Push-Pull	Female Socket	All		Solder	Black	Through Hole	Receptacle	Tin	4			0.1 in	2.54 mm	-55 °C	125 °C	1	Beryllium Copper	3.18 mm	0.125 in	Circular	Polybutylene Terephthalate (PBT) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SS-104 Series

4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
