87227-2

Active

TE Connectivity AMP Connectors

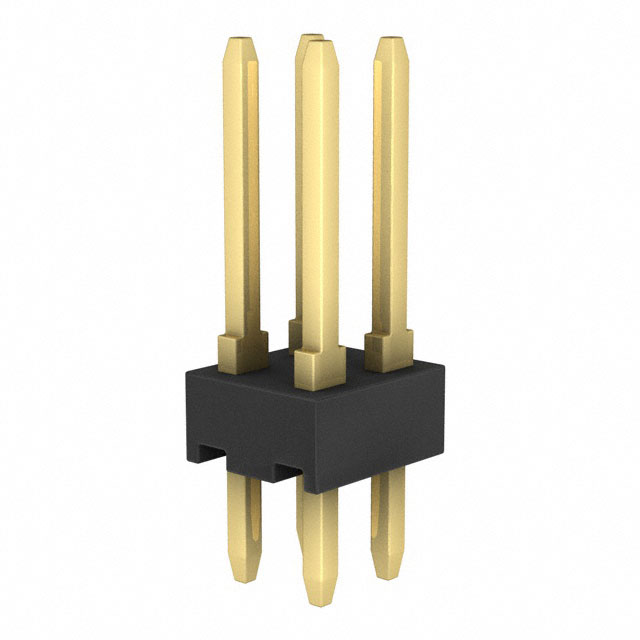

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

87227-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.74
		10	$ 2.86
		100	$ 2.21
		500	$ 1.86
		1000	$ 1.74
		5000	$ 1.49

Description

General part information

87227 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87227-2	87227 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87227 Series

CONN HEADER VERT 50POS 2.54MM

Part	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Shape	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Material	Style	Fastening Type	Contact Finish - Post	Termination	Number of Positions Loaded	Contact Type	Number of Positions	Number of Rows	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 2-87227-5	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	50	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 3-87227-0	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	60	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-6	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	12	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 1-87227-5	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	30	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 1-87227-6	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin		2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-5	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	10	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-4	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	8	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-8	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin		2	Unshrouded	-65 ░C	105 ░C	UL94 V-0	16
TE Connectivity AMP Connectors 87227-3	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	6	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 1-87227-3	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	26	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
