87227-8

Active

TE Connectivity AMP Connectors

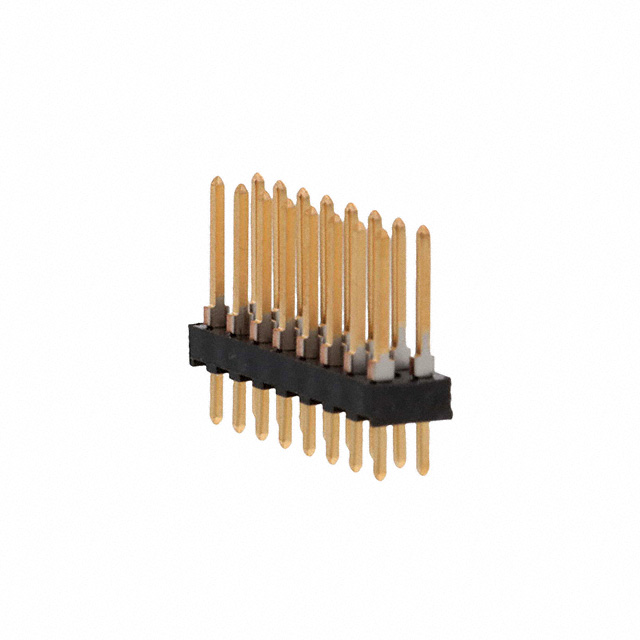

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

87227-8

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.57
		10	$ 6.60
		100	$ 5.87
		500	$ 5.49
		1000	$ 4.90

Description

General part information

87227 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87227-8	87227 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	4 - 80
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87227 Series

CONN HEADER VERT 50POS 2.54MM

Part	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Shape	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Material	Style	Fastening Type	Contact Finish - Post	Termination	Number of Positions Loaded	Contact Type	Number of Positions	Number of Rows	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 2-87227-5	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	50	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 3-87227-0	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	60	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-6	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	12	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 1-87227-5	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	30	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 1-87227-6	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin		2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-5	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	10	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-4	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin	8	2	Unshrouded	-65 ░C	105 ░C	UL94 V-0
TE Connectivity AMP Connectors 87227-8	3 A	15 µin	0.38 µm	Flash	Square	Phosphor Bronze	3.18 mm	0.125 in	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	13.55 mm	0.533 in	Header	Gold	0.09 in	2.29 mm	Thermoplastic	Board to Board, Cable	Push-Pull	Gold	Solder	All	Male Pin		2	Unshrouded	-65 ░C	105 ░C	UL94 V-0	16
