BPJF04X

Active

Switchcraft Inc.

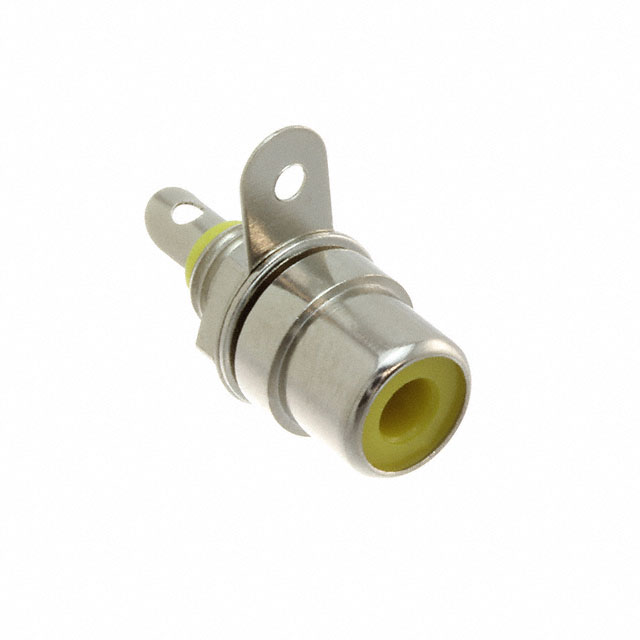

CONN RCA JACK MONO 3.2MM PNL MT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	BPJF04X

Actual Diameter [custom]	8.25 mm
Actual Diameter [custom]	0.134 "
Actual Diameter [custom]	3.4 mm
Actual Diameter [custom]	0.325 "
Body Color	Silver
Body Material	Brass
Connector Type	Phono (RCA) Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Features	Mounting Hardware, Grounding Tab
Gender	Female
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm
Insulation Color	Yellow
Internal Switch(s)	False
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Panel Hole Size	10.2 mm
Panel Hole Size	0.402 in
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)
Thread Size	1/4"-32

CONN RCA JACK MONO 3.2MM PNL MT

Part	Body Color	Gender	Shielding	Thread Size	Contact Material	Termination	Includes	Signal Lines	Connector Type	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Insulation Color	Panel Hole Size	Panel Hole Size	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material - Plating [custom]	Features	Industry Recognized Mating Diameter [diameter]	Internal Switch(s)
Switchcraft Inc. BPJF04X	Silver	Female	Unshielded	1/4"-32	Brass	Solder Eyelet(s)	Connector, Nut, Washer	Mono	Phono (RCA) Jack	8.25 mm	0.134 "	3.4 mm	0.325 "	Yellow	10.2 mm	0.402 in	Brass	2	2	Nickel	Grounding Tab, Mounting Hardware	3.2 mm, 9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
