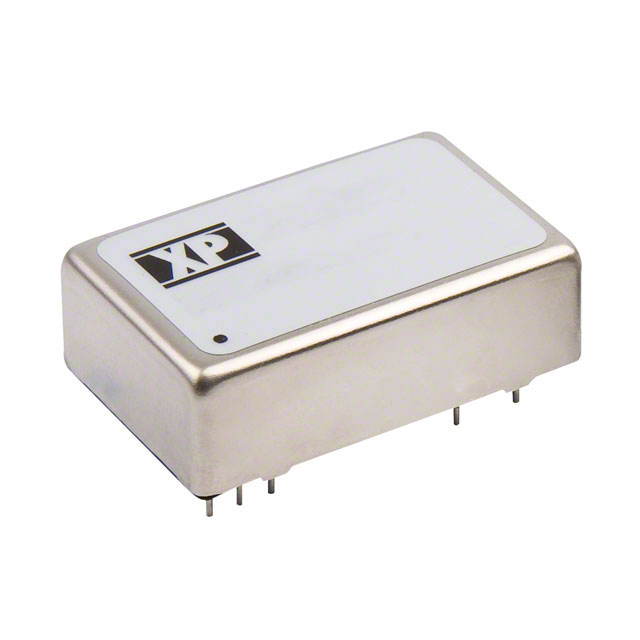

JCG1248S3V3

Active

XP POWER

DC DC CONVERTER 3.3V 12W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 3.3V 12W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Control Features	Mounting Type	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Package / Case	Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Standard Number	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]
XP POWER JCG1248D15	89 %	Active High Enable	Through Hole	15 V	75 V	12 W	100 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	9 PC Pad	24-DIP Module	Isolated Module	2	400 mA	400 mA	1.6 kV	62368-1	-15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	ITE (Commercial)
XP POWER JCG1248S15	89 %	Active High Enable	Through Hole	15 V	75 V	12 W	100 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO		24-DIP Module 8 Leads	Isolated Module	1			1.6 kV	62368-1		31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	ITE (Commercial)	800 mA
XP POWER JCG1248S3V3	88 %	Active High Enable	Through Hole	3.3 V	75 V	12 W	100 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO		24-DIP Module 8 Leads	Isolated Module	1			1.6 kV	62368-1		31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	ITE (Commercial)	3.5 A
XP POWER JCG1248S05	89 %	Active High Enable	Through Hole	5 V	75 V	12 W	100 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO		24-DIP Module 8 Leads	Isolated Module	1			1.6 kV	62368-1		31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	ITE (Commercial)	2.4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 31.02

General part information

Isolated Module DC DC Converter 1 Output 3.3V 3.5A 36V - 75V Input
